TRUSCO Short Plunger M16 Steel Pin T16ST 1 pc
TRUSCO Short Plunger M16 Steel Pin T16ST 1 pc
Regular price
¥665
Regular price
Sale price
¥665
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

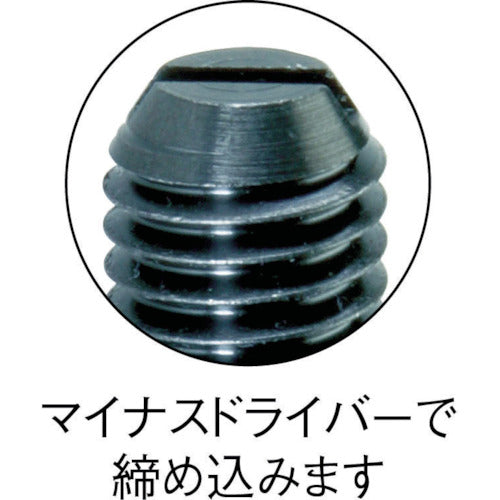

Catalog number: T16ST Features: ● A spring plunger with a negative groove whose body and pin are made of steel. Applications: ● Used for positioning, fixing, pressing, and pushing away. Specifications: ● Load (N): 38-78 ● Thread dimensions: M16 x 2.00 ● Stroke (mm): 4.5 ● Total length (mm): 24 ● Center pin diameter (mm): 8.5 ● Heat resistance temperature (℃): 250 Material/Finish: ● Body: Steel ● Center pin: Steel, hardened
