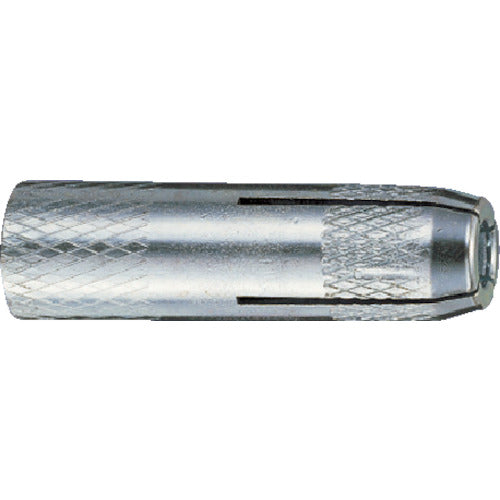

TRUSCO CT Anchor Steel M12X50 Pack of 4 (Concrete Anchor/Internal Cone Drive-in Type) CT-1250BT 1 PK

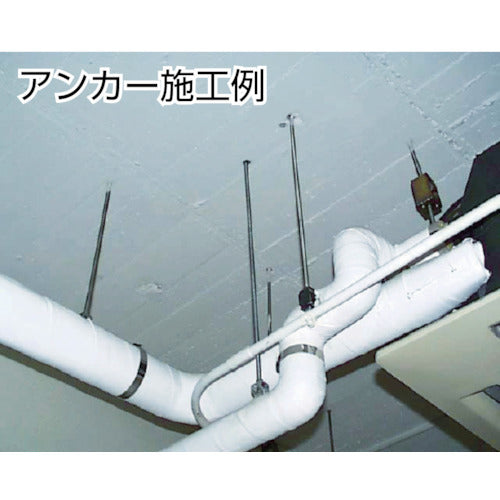

Catalog number: CT-1250BT Features: ● Internal cone is driven in, so there is little variation in construction. ● Construction completion can be confirmed by using the dedicated hand holder. ● Construction can also be done through holes (GT type). Applications: ● Electrical installation work, piping work, heating and cooling duct work, etc. Specifications: ● Screw size: M12 ● Outer diameter (mm): 16.0 ● Total length (mm): 50 ● Screw length (mm): 20 ● Drill diameter (mm): 16.5 ● Maximum tensile load (kN): 24.5 ● Packed ● Compatible hand holder: CT-40H Material/Finish: ● Steel ● Surface treatment: Trivalent chromate treatment Note: ● Maximum tensile load is the value when the concrete strength Fc = 21N/[[MM2]]. ● A dedicated hand holder is required for construction.
