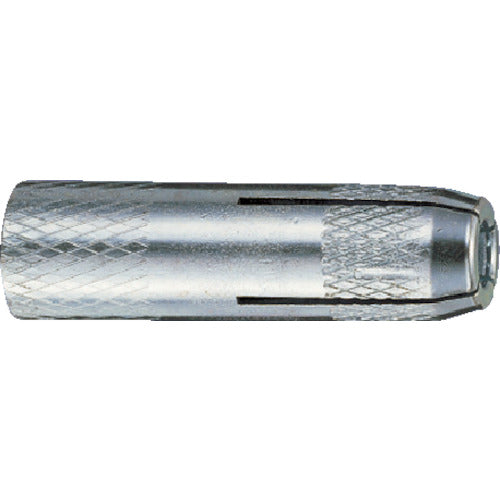

TRUSCO CT Anchor Steel M6X25 8 Pieces (Concrete Anchor/Internal Cone Drive-in Type) CT-625BT 1 PK

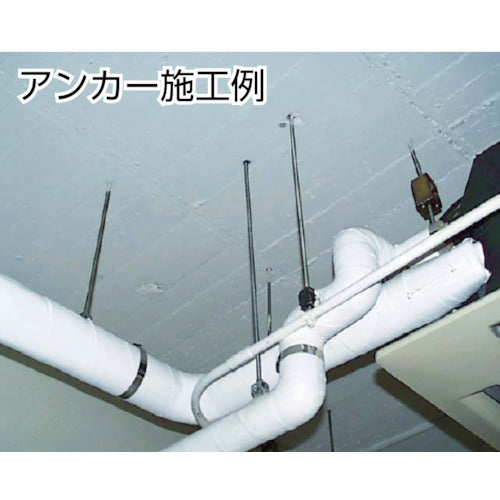

Catalog number: CT-625BT Features: ● Internal cone is driven in, so there is little variation in construction. ● Construction completion can be confirmed by using the dedicated hand holder. ● Construction can also be done through holes (GT type). Applications: ● Electrical installation work, piping work, heating and cooling duct work, etc. Specifications: ● Screw size: M6 ● Outer diameter (mm): 8.0 ● Total length (mm): 25 ● Screw length (mm): 10 ● Drill diameter (mm): 8.5 ● Maximum tensile load (kN): 6.7 ● Packed ● Compatible hand holder: CT-20H Material/Finish: ● Steel ● Surface treatment: Trivalent chromate treatment Note: ● Maximum tensile load is the value when the concrete strength Fc = 21N/[[MM2]]. ● A dedicated hand holder is required for construction.
