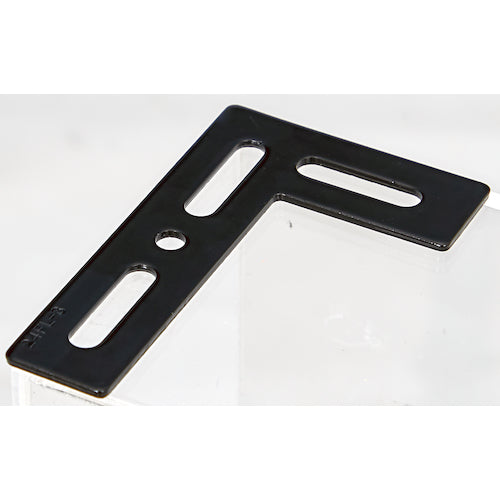

TRUSCO joint fitting 24 type flat cross dimension 100 x 65 holes TK24-FL3B 1 piece

Catalogue number: TK24-FL3B Features: ●Even if you temporarily attach the device beforehand, you can easily adjust and fine-tune it. ●You can adjust it freely with just one screwdriver. ●It is a component that can be easily combined in a variety of ways. Applications: ●Connecting fittings. ●Fittings for mounting automotive parts. Specifications: ●Thickness (mm): 2.3 ●W (mm): 24 ●L1 (mm): 100 ●L2 (mm): 65 ●Hole diameter (mm): 6.5 ●Number of holes (pieces): 4 ●Number of holes: 4 ●Width W (mm): 24 ●Length L2 (mm): 65 ●Length L1 (mm): 100 Material/Finish: ●Steel ●Surface treatment: Black paint finish
