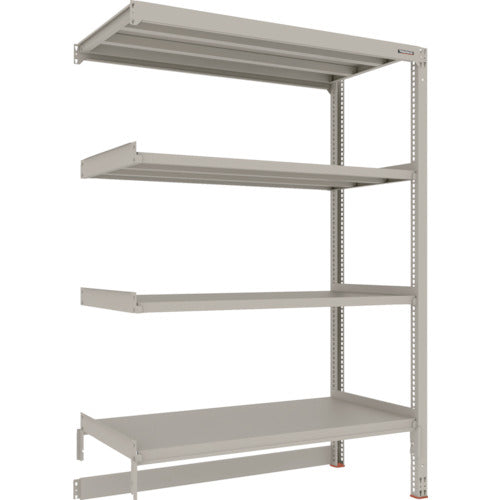

TRUSCO Steel Rack M3 Medium Duty Shelf Cart Top Storage Type H2100 x W1500 x D721 4 Tiers Connected M3-DB7574B 1 S

Catalogue number: M3-DB7574B Features: ●By adjusting the height of the lower section to match the height of the top of the trolley, the top of the trolley can be stored, making effective use of space. ●If the height and depth are the same, additional units can be added. ●When connecting, the supports are shared, allowing for cost reduction. ●Can store trolleys up to 320mm in height. ●Uses a C-shaped support with an excellent cross-sectional structure that is resistant to loads and lateral twisting. ●The use of a resin base prevents damage to floors. Applications: ●Storage of trolleys and flatbed carts. Specifications: ●Width (mm): 1500 ●Depth (mm): 731 ●Height (mm): 2100 ●Effective width (mm): 1460 ●Color: Neo Gray ●Number of shelves (tiers): 4 ●Uniform load capacity (kg/tier): 300 ●Maximum load capacity (kg/unit): 900 ●Shelf adjustment pitch (mm): 25 ●Type: Interlocking type ●Estimated assembly time: 30 minutes for 2 people ●Uniform load capacity: 300 kg/tier ●Maximum load capacity: 900 kg/unit ●Cart top storage type Material/Finish: ●Main body: Steel (powder coated) ●Base: Polypropylene (100% recycled material) Set contents/Accessories: ●1 set of M3 type main body, 2 intermediate beams for opening the lower tier, 1 box-shaped back beam Note: ●The load-bearing capacity is halved when concentrated loads are applied. ●Be sure to distribute the load evenly when using. ●Cannot be used with interlocking type only. ●The upper end of the intermediate beam should be installed no higher than 341 mm.
