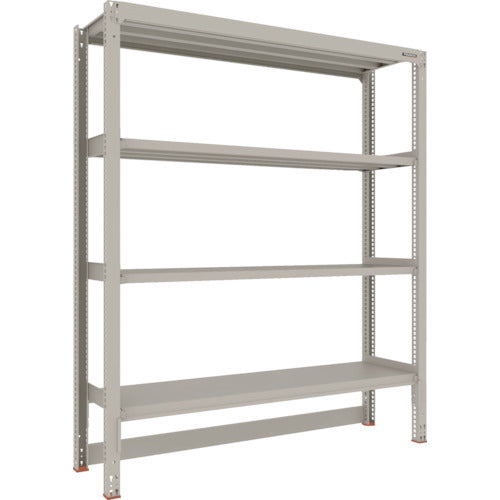

TRUSCO Steel Rack M3 Medium Duty Shelf Cart Top Storage Type W1800 x D471 x H2100 4 Tiers Single Unit M3-DB7654 1 S

Catalogue number: M3-DB7654 Features: ●By adjusting the height of the lower section to match the height of the top of the dolly, the top of the dolly can be stored, making effective use of space. ●If the height and depth are the same, additional units can be added. ●When connecting, the supports are shared, reducing costs. ●Can store dollies up to 320mm in height. ●Uses a C-shaped support with an excellent cross-sectional structure that is resistant to loads and lateral twisting. ●The use of a resin base prevents damage to floors. Applications: ●Storage of dollies and flatbed carts. Specifications: Width (mm): 1861 Depth (mm): 481 Height (mm): 2111 Effective width (mm): 1760 Color: Neo Gray Number of shelves (tiers): 4 Even load capacity (kg/tier): 300 Maximum load capacity (kg/unit): 900 Shelf adjustment pitch (mm): 25 Type: Standalone type Assembly time: 2 people 30 minutes Even load capacity: 300kg/tier Maximum load capacity: 900kg/unit Cart top storage type Material/Finish: Main body: Steel (powder coated) Base: Polypropylene (100% recycled material) Set contents/Accessories: M3 type main body x 1 set, lower tier opening intermediate beam x 2, box-shaped back beam x 1 Caution: Concentrated load reduces the load capacity by half. Be sure to distribute the load evenly when using. Cannot be used with only the connecting type. ●The upper end of the intermediate beam should be installed no higher than 341 mm.
