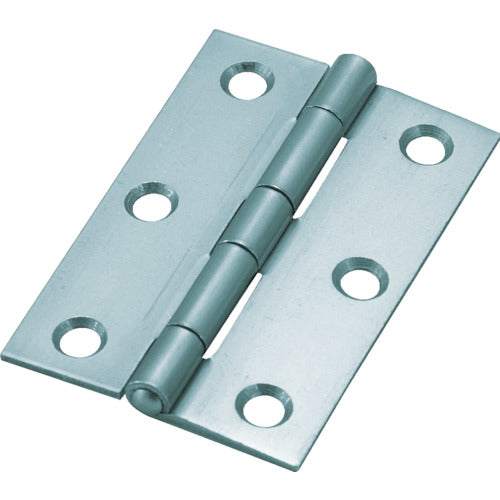

TRUSCO Steel Thick Hinge Silver Paint Finish Total Length 89mm (10 Pieces) 888-89SV 1 Bag

TRUSCO Steel Thick Hinge Silver Paint Finish Total Length 89mm (10 Pieces) 888-89SV 1 Bag

JAN：4989999095517 　
Architectural hardware Architectural hinges Hardware and building materials Hinge (steel) TRUSCO D hardware
¥1,529
¥1,529
Sale Sold out
Shipping calculated at checkout.

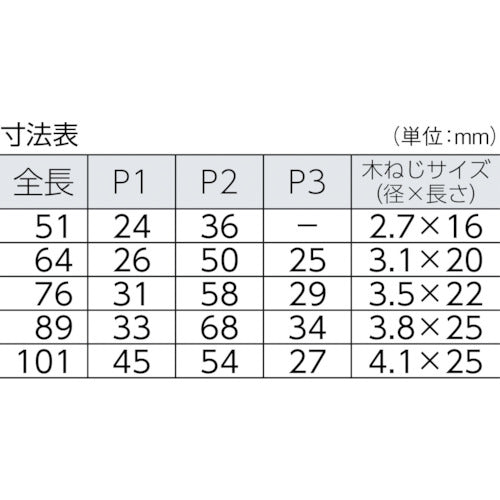

Catalog number: 888-89SV Specifications: ● Total length (mm): 89 ● Width (mm): 54 ● Thickness (mm): 1.7 ● Number of screw holes: 6 ● Hole diameter (mm): 5.4 ● D2 (mm): 8.9 ● Load capacity (kg) when using 2 pieces: 16 ● Number of wood screws: 60 ● Opening angle (°): 300° to 330° ● Surface treatment: Silver paint finish ● P1 (mm): 33 ● P2 (mm): 68 ● P3 (mm): 34 ● Wood screw diameter x length (mm): 3.8 x 25 ● Installation method: Wood screw (included) Material / Finish: ● Steel (SPCC)
