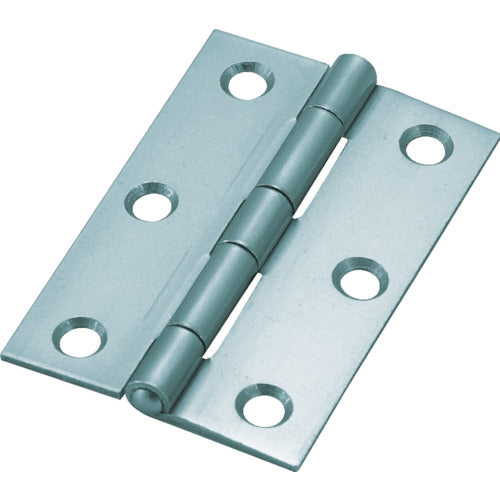

TRUSCO Steel Thick Hinge, Plain Finish, Total Length 76mm (10 Pieces) 888-76N 1 Bag

TRUSCO Steel Thick Hinge, Plain Finish, Total Length 76mm (10 Pieces) 888-76N 1 Bag

JAN：4989999095395 　
Architectural hardware Architectural hinges Hardware and building materials Hinge (steel) TRUSCO D hardware
¥697
¥697
Sale Sold out
Shipping calculated at checkout.

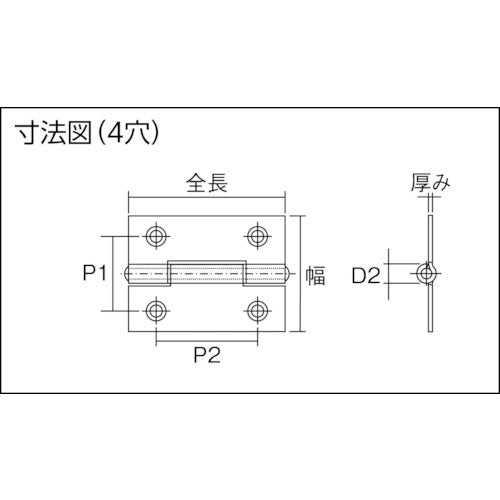

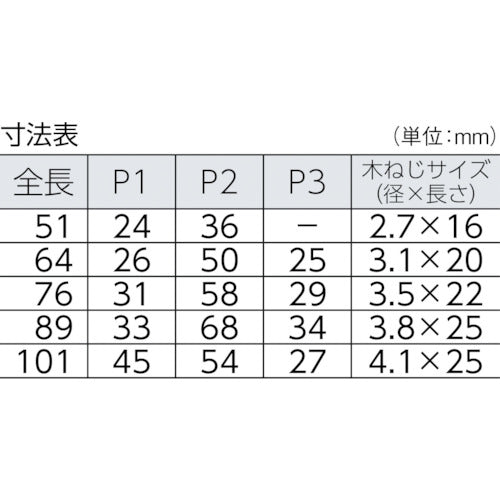

Catalog number: 888-76N Specifications: ● Total length (mm): 76 ● Width (mm): 49 ● Thickness (mm): 1.5 ● Number of screw holes: 6 ● Hole diameter (mm): 5.2 ● D2 (mm): 7.5 ● Load capacity (kg) when using 2 pieces: 12 ● Opening angle (°): 300 to 330 degrees ● Surface treatment: Plain finish ● P1 (mm): 31 ● P2 (mm): 58 ● P3 (mm): 29 ● Wood screw diameter x length (mm): 3.5 x 22 ● Surface treatment: Plain finish ● Installation method: Wood screw (sold separately) Material / Finish: ● Steel (SPCC)
