TRUSCO Steel Horizontal Hinge Trivalent Chrome Plated Finish Total Length 38mm (4 Pieces) 415-38UNCR 1 Bag

TRUSCO Steel Horizontal Hinge Trivalent Chrome Plated Finish Total Length 38mm (4 Pieces) 415-38UNCR 1 Bag

JAN：4989999096972 　
Architectural hardware Architectural hinges Hardware and building materials Hinge (steel) TRUSCO D hardware
¥436
¥436
Sale Sold out
Shipping calculated at checkout.

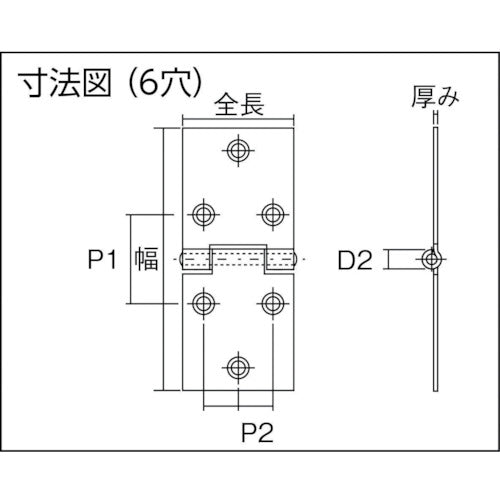

Catalog number: 415-38UNCR Specifications: ● Total length (mm): 38 ● Width (mm): 91 ● Thickness (mm): 1.5 ● Number of screw holes: 6 ● Hole diameter (mm): 4.8 ● D2 (mm): 7.2 ● Load capacity (kg) when using 2 pieces: 8 ● Number of wood screws: 24 ● Opening angle (°): 300-330° ● Surface treatment: Trivalent chromium plating finish ● P1 (mm): 31 ● P2 (mm): 24 ● Wood screw diameter x length (mm): 3.5 x 22 ● Installation method: Wood screw (sold separately) Material/Finish: ● Steel (SPCC)
