TRUSCO Steel Horizontal Hinge, Trivalent Chrome Plated Finish, Total Length 51mm (4 Pieces) 415-51UNCR 1 Bag

TRUSCO Steel Horizontal Hinge, Trivalent Chrome Plated Finish, Total Length 51mm (4 Pieces) 415-51UNCR 1 Bag

JAN：4989999096989 　
Architectural hardware Architectural hinges Hardware and building materials Hinge (steel) TRUSCO D hardware
¥704
¥704
Sale Sold out
Shipping calculated at checkout.

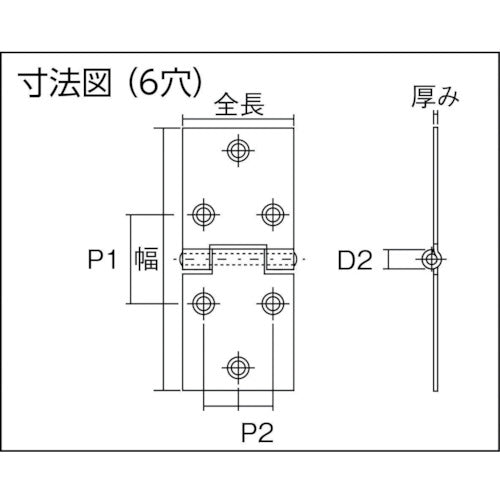

Catalog number: 415-51UNCR Specifications: ● Total length (mm): 51 ● Width (mm): 115 ● Thickness (mm): 1.7 ● Number of screw holes: 6 ● Hole diameter (mm): 5.0 ● D2 (mm): 8.7 ● Load capacity (kg) when using 2 pieces: 10 ● Number of wood screws: 24 ● Opening angle (°): 300-330° ● Surface treatment: Trivalent chromium plating finish ● P1 (mm): 45 ● P2 (mm): 34 ● Wood screw diameter x length (mm): 3.5 x 22 ● Installation method: Wood screw (sold separately) Material/Finish: ● Steel (SPCC)
