TRUSCO Steel Horizontal Hinge, Plain Finish, Total Length 32mm (4 Pieces) 415-32N 1 Bag
TRUSCO Steel Horizontal Hinge, Plain Finish, Total Length 32mm (4 Pieces) 415-32N 1 Bag
Regular price
¥325
Regular price
Sale price
¥325
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

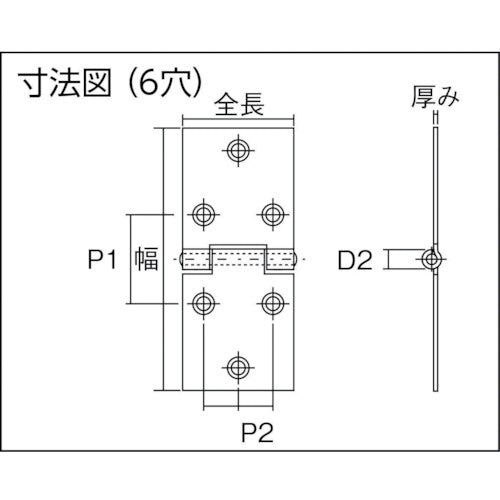

Catalog number: 415-32N Specifications: ● Total length (mm): 32 ● Width (mm): 82 ● Thickness (mm): 1.5 ● Number of screw holes: 6 ● Hole diameter (mm): 4.5 ● D2 (mm): 6.6 ● Load capacity (kg) when using 2 pieces: 6 ● Number of wood screws: 24 ● Opening angle (°): 300-330° ● Surface treatment: Plain finish ● P1 (mm): 29 ● P2 (mm): 19 ● Wood screw diameter x length (mm): 3.1 x 20 ● Surface treatment: Plain finish ● Installation method: Wood screws (sold separately) Material/Finish: ● Steel (SPCC)
