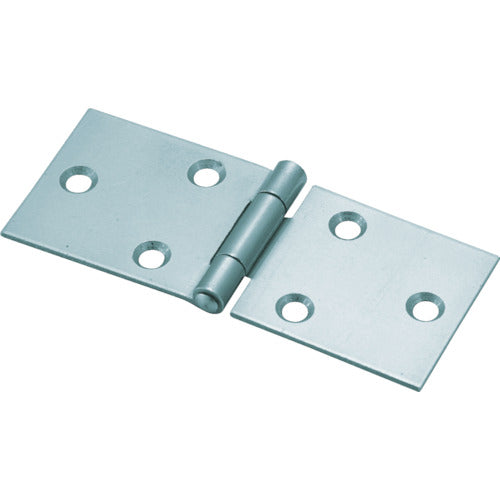

TRUSCO Steel Horizontal Hinge, Plain Finish, Total Length 38mm (4 Pieces) 415-38N 1 Bag
TRUSCO Steel Horizontal Hinge, Plain Finish, Total Length 38mm (4 Pieces) 415-38N 1 Bag
Regular price
¥365
Regular price
Sale price
¥365
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

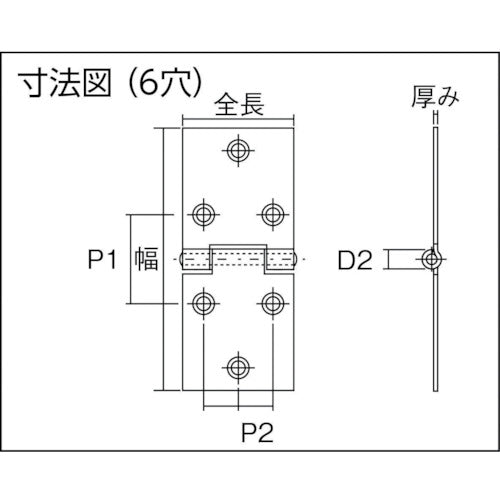

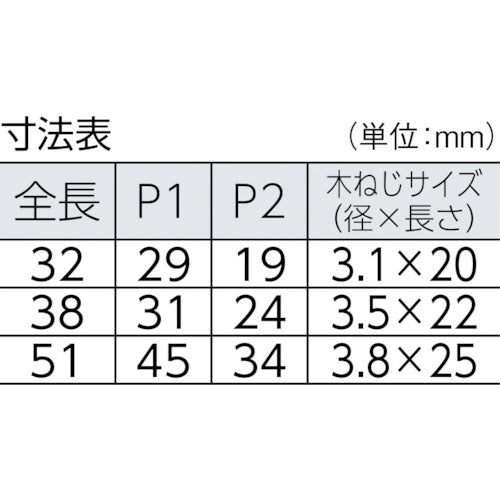

Catalog number: 415-38N Specifications: ● Total length (mm): 38 ● Width (mm): 91 ● Thickness (mm): 1.5 ● Number of screw holes: 6 ● Hole diameter (mm): 4.8 ● D2 (mm): 7.2 ● Load capacity (kg) when using 2 pieces: 8 ● Number of wood screws: 24 ● Opening angle (°): 300-330° ● Surface treatment: Plain finish ● P1 (mm): 31 ● P2 (mm): 24 ● Wood screw diameter x length (mm): 3.5 x 22 ● Surface treatment: Plain finish ● Installation method: Wood screws (sold separately) Material/Finish: ● Steel (SPCC)
