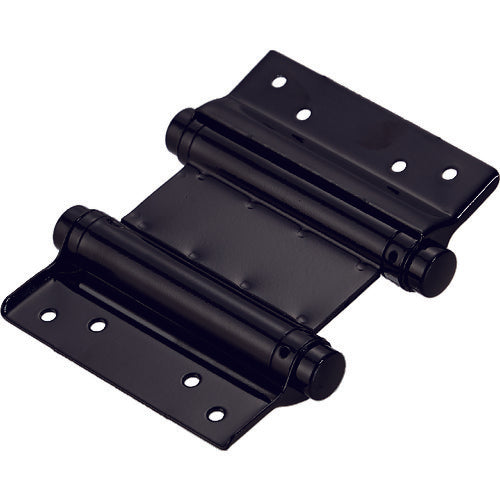

TRUSCO Steel Free Hinge, Double Opening, Total Length 102mm (2 Pieces) FH102-ST-B 1 Box

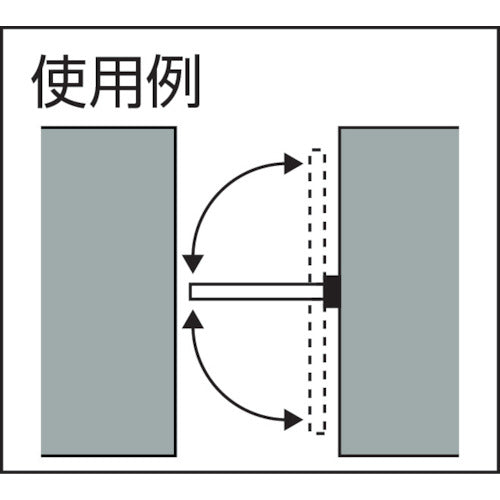

Catalog number: FH102-ST-B Features: ● Built-in spring to keep the door closed at all times. Uses: ● Swing door. Specifications: ● Total length (mm): 102 ● Width (mm): 39 ● Thickness (mm): 1.2 ● Number of screw holes: 8 ● Hole diameter (mm): 5 ● D1 (mm): 29 ● D2 (mm): 55.0 ● Load capacity (kg) when using 2 pieces: 10 ● Surface treatment: Black paint finish ● P1 (mm): 16 ● P2 (mm): 9.5 ● P3 (mm): 13.5 ● P4 (mm): 30 ● Number of wood screws: 8 ● Wood screw size (mm) diameter: 3.5 ● Wood screw size (mm) length: 22 ● Installation method: Wood screw (included) ● Double-opening type ● Opening and closing strength adjustment included Material/Finish: ● Steel (SPCC)
