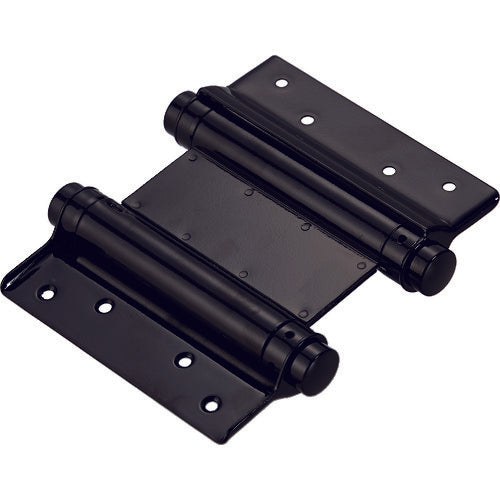

TRUSCO Steel Free Hinge, Double Opening, Total Length 127mm (2 Pieces) FH127-ST-B 1 Box

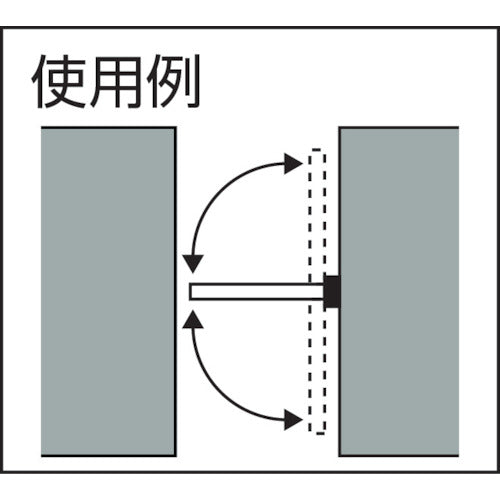

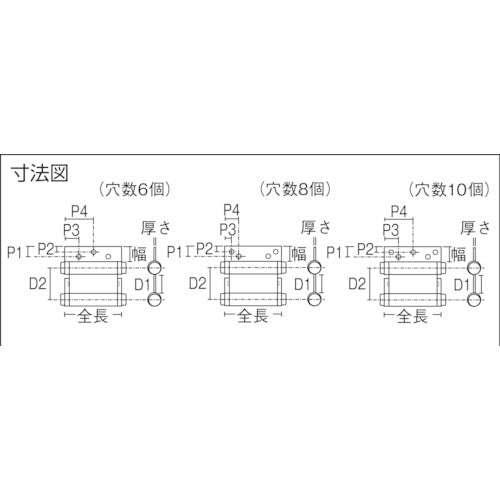

Catalog number: FH127-ST-B Features: ● Built-in spring to keep the door closed at all times. Uses: ● Swing door. Specifications: ● Total length (mm): 126 ● Width (mm): 44.5 ● Thickness (mm): 1.6 ● Number of screw holes: 8 ● Hole diameter (mm): 5 ● D1 (mm): 29 ● D2 (mm): 66.0 ● Load capacity (kg) when using 2 pieces: 13 ● Surface treatment: Black paint finish ● P1 (mm): 20.5 ● P2 (mm): 11.5 ● P3 (mm): 17.2 ● P4 (mm): 40.7 ● Number of wood screws: 8 ● Wood screw size (mm) diameter: 3.5 ● Wood screw size (mm) length: 22 ● Installation method: Wood screw (included) ● Double-opening type ● Opening and closing strength adjustment included Material/Finish: ● Steel (SPCC)
