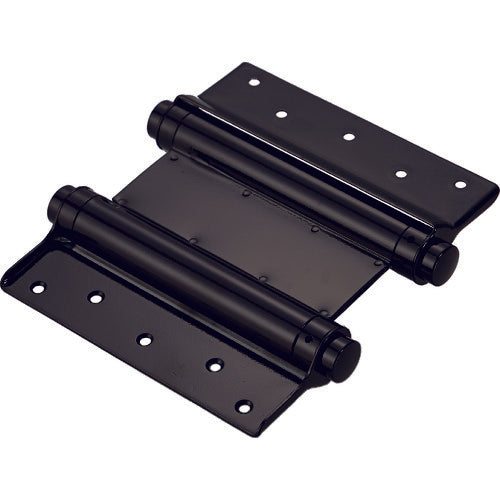

TRUSCO Steel Free Hinge, Double Opening, Total Length 153mm (2 Pieces) FH153-ST-B 1 Box

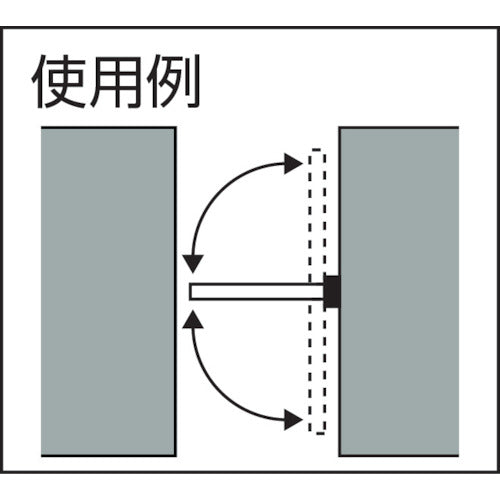

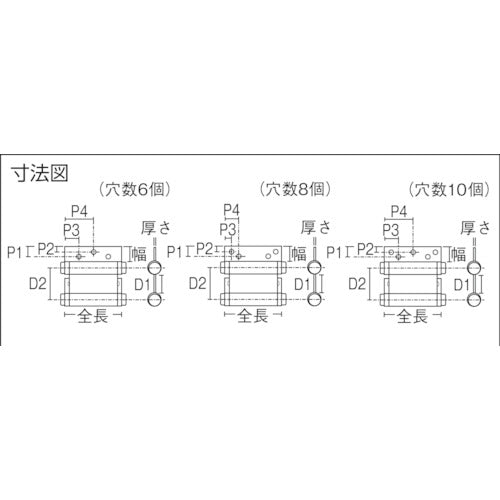

Catalog number: FH153-ST-B Features: ● Built-in spring to keep the door always closed. Uses: ● Swing door. Specifications: ● Total length (mm): 152 ● Width (mm): 51 ● Thickness (mm): 1.6 ● Number of screw holes: 10 ● Hole diameter (mm): 5 ● D1 (mm): 40 ● D2 (mm): 68.0 ● Load capacity (kg) when using 2 pieces: 15 ● Surface treatment: Black paint finish ● P1 (mm): 21.0 ● P2 (mm): 10.5 ● P3 (mm): 15.5 ● P4 (mm): 41.0 ● P5 (mm): 76 ● Number of wood screws: 10 ● Wood screw size (mm) diameter: 3.8 ● Wood screw size (mm) length: 25 ● Installation method: Wood screw (included) ● Double-opening type ● Opening and closing strength adjustment included Material/Finish: ● Steel (SPCC)
