TRUSCO Steel Thin Ordinary Hinge Trivalent Chrome Plated Finish Total Length 31.5mm 550-32UNCR 1 Bag

TRUSCO Steel Thin Ordinary Hinge Trivalent Chrome Plated Finish Total Length 31.5mm 550-32UNCR 1 Bag

JAN：4989999096439 　
Architectural hardware Architectural hinges Hardware and building materials Hinge (steel) TRUSCO D hardware
¥341
¥341
Sale Sold out
Shipping calculated at checkout.

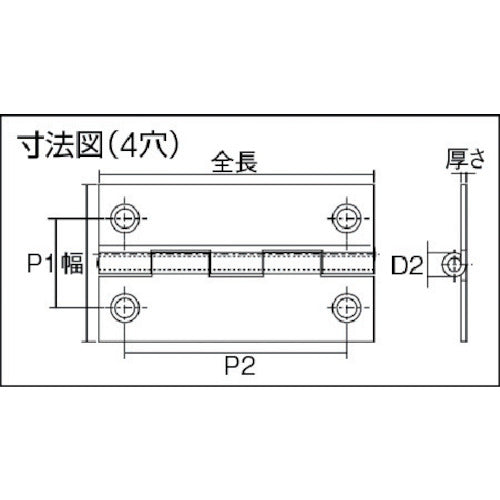

Catalog number: 550-32UNCR Specifications: ● Total length (mm): 31.5 ● Width (mm): 22 ● Thickness (mm): 0.8 ● Number of screw holes: 4 ● Hole diameter (mm): 3.3 ● D2 (mm): 3.8 ● Load capacity (kg) when using 2 pieces: 1 ● Number of wood screws: 40 ● Surface treatment: Trivalent chromium plating finish ● P1 (mm): 14.0 ● P2 (mm): 21.5 ● P3 (mm): - ● Wood screw diameter x length (mm): 2.1 x 10 ● Installation method: Wood screw (sold separately) ● Opening angle 300 to 330 degrees ● Opening angle 300 to 330 degrees Material / Finish: ● Steel (SPCC)
