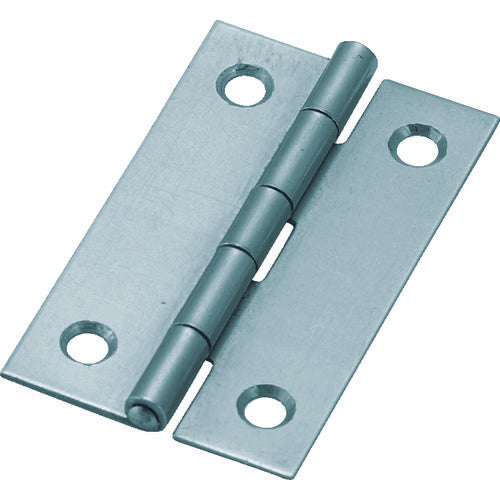

TRUSCO Steel Thin Ordinary Hinge Trivalent Chrome Plated Finish Total Length 51.0mm 550-51UNCR 1 Bag

TRUSCO Steel Thin Ordinary Hinge Trivalent Chrome Plated Finish Total Length 51.0mm 550-51UNCR 1 Bag

JAN：4989999096453 　
Architectural hardware Architectural hinges Hardware and building materials Hinge (steel) TRUSCO D hardware
¥404
¥404
Sale Sold out
Shipping calculated at checkout.

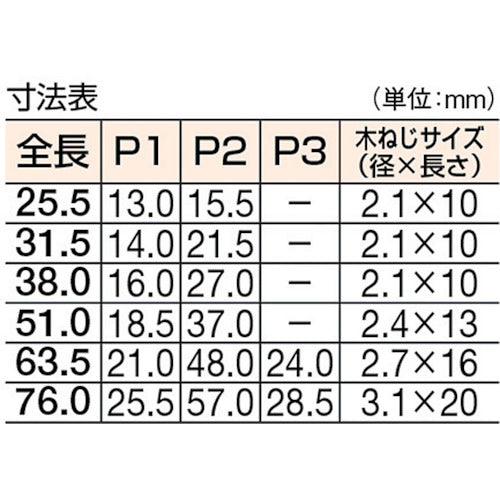

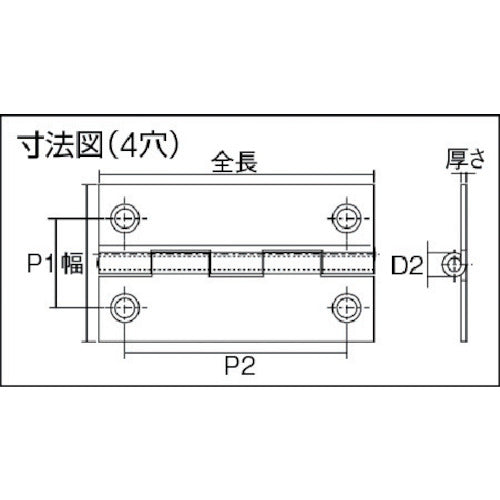

Catalog number: 550-51UNCR Specifications: ● Total length (mm): 51 ● Width (mm): 30.5 ● Thickness (mm): 0.9 ● Number of screw holes: 4 ● Hole diameter (mm): 4.0 ● D2 (mm): 4.5 ● Load capacity (kg) when using 2 pieces: 3 ● Number of wood screws: 40 ● Surface treatment: Trivalent chromium plating finish ● P1 (mm): 18.5 ● P2 (mm): 37.0 ● P3 (mm): - ● Wood screw diameter x length (mm): 2.4 x 13 ● Installation method: Wood screw (sold separately) ● Opening angle 300 to 330 degrees Material / Finish: ● Steel (SPCC)
