TRUSCO Steel Thin Ordinary Hinge, Plain Finish, Total Length 38.0mm (10 Pieces) 550-38N 1 Bag

TRUSCO Steel Thin Ordinary Hinge, Plain Finish, Total Length 38.0mm (10 Pieces) 550-38N 1 Bag

JAN：4989999096385 　
Architectural hardware Architectural hinges Hardware and building materials Hinge (steel) TRUSCO D hardware
¥332
¥332
Sale Sold out
Shipping calculated at checkout.

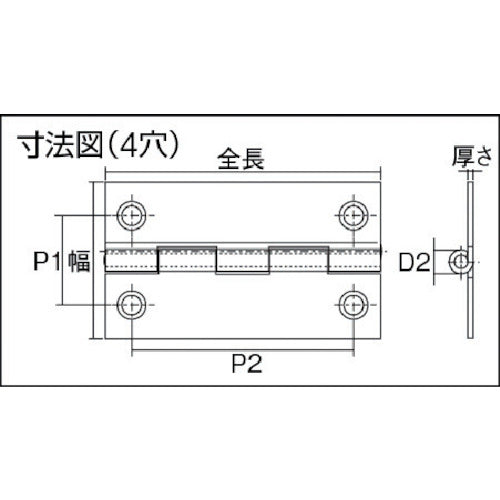

Catalog number: 550-38N Specifications: ● Total length (mm): 38 ● Width (mm): 26 ● Thickness (mm): 0.8 ● Number of screw holes: 4 ● Hole diameter (mm): 3.5 ● D2 (mm): 4.0 ● Load capacity (kg) when using 2 pieces: 2 ● Number of wood screws: 40 ● Surface treatment: Plain finish ● P1 (mm): 16.0 ● P2 (mm): 27.0 ● P3 (mm): - ● Wood screw diameter x length (mm): 2.1 x 10 ● Surface treatment: Plain finish ● Installation method: Wood screw (sold separately) ● Opening angle 300 to 330 degrees Material / Finish: ● Steel (SPCC)
