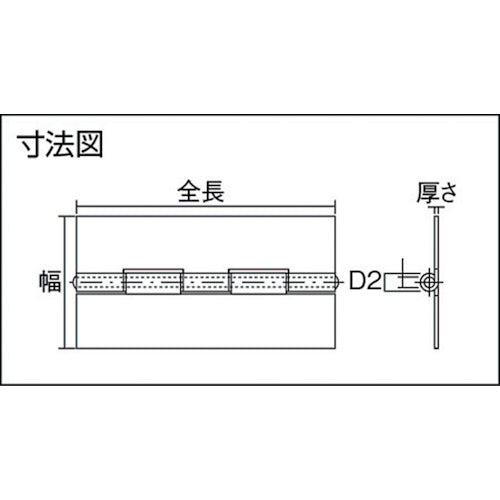

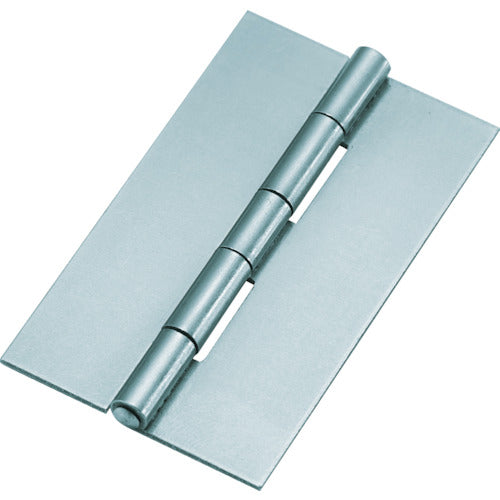

Catalog number: 550W-51N Features: ● A hinge without mounting holes, as it is attached by welding. Applications: ● For opening and closing doors and lids after installation Specifications: ● Total length (mm): 51.0 ● Width (mm): 30.5 ● Thickness (mm): 0.9 ● Load capacity (kg) when using 2 pieces: 3 ● Installation method: Welded type ● Surface treatment: Plain finish ● D2 (mm): 4.5 ● Opening angle: 300 to 330° Material/Finish: ● Steel (SPCC) ● Surface treatment: Plain finish
