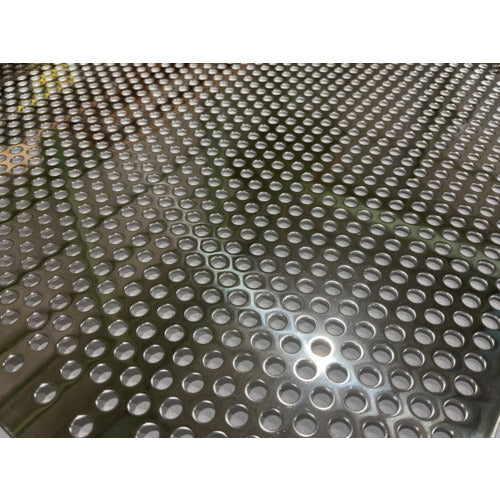

TRUSCO Stainless Steel Punching Metal 1t D2P3 450X450 304BA1-D2-P3-450X450 1 sheet

Catalog number: 304BA1-D2-P3-450X450 Features: ● Metal plate with regular holes made with a punching press die. ● Since the surface is flat, it is highly durable against wear and tear and the holes will not collapse. ● Cut to 450mm square size. Applications: ● Machine and equipment covers, filters, soundproofing and heat retention panels, trays, ceiling materials, ventilation and security panels, architectural design materials, etc. Specifications: ● Width (mm): 450 ● Length (mm): 450 ● Plate thickness (mm): 1 ● Hole diameter (mm): 2 ● Pitch (mm): 3 ● Arrangement (mm): 60 degree staggered Material/Finish: ● Stainless steel (SUS304)
