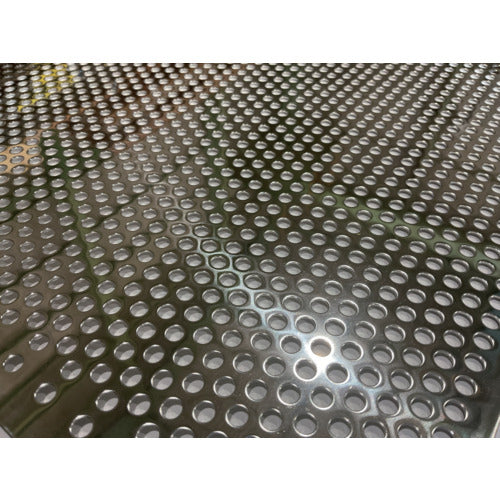

TRUSCO Stainless Steel Punching Metal 1t D3P5 450X450 304BA1-D3-P5-450X450 1 sheet

Catalog number: 304BA1-D3-P5-450X450 Features: ●Metal plate with regular holes made with a punching press die. ●The surface is flat, so it is highly durable against wear and tear and the holes will not collapse. ●Cut to 450mm square size. Applications: ●Machine and equipment covers, filters, soundproofing and heat retention panels, trays, ceiling materials, ventilation and security panels, architectural design materials, etc. Specifications: ●Width (mm): 450 ●Length (mm): 450 ●Plate thickness (mm): 1 ●Hole diameter (mm): 3 ●Pitch (mm): 5 ●Arrangement (mm): 60 degree staggered Material/Finish: ●Stainless steel (SUS304)
