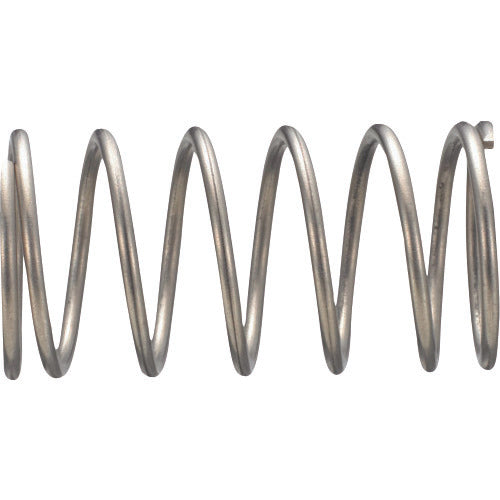

TRUSCO Stainless Steel Compression Coil Spring D12Xd1XL43 (5 pieces) TSS-55189 1 PK

Catalog number: TSS-55189 Features: ● A spring used in the compression direction, with wire wound in a spiral shape with gaps between each coil. ● Dimensional and spring characteristic tolerances comply with JIS B2704 Class 2. Applications: ● A spring used in the compression direction. Specifications: ● Wire diameter d (mm): 1.00 ● Outer diameter D (mm): 12.0 ● Free height L (mm): 43.0 ● Number of turns (turns): 11.50 ● Spring constant (N/mm): 0.677 ● Allowable load (N): 17.36 ● Load height L1 (mm): 17.4 ● Solid height (mm): 11.5 ● Free length (mm): 43.0 ● Terminal shape: Closed end ● Winding direction: Right-handed winding ● Operating temperature range: 290°C or less Material/Finish: ● Stainless steel (SUS304-WPB)
