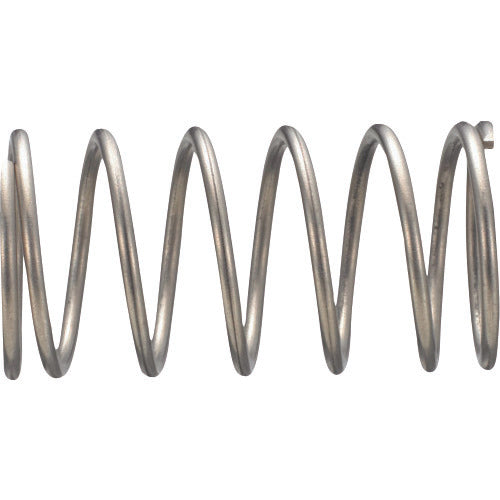

TRUSCO Stainless Steel Compression Coil Spring D2.25Xd0.25XL11.4 (20 pieces) TSS-55021 1 PK

Catalog number: TSS-55021 Features: ● A spring used in the compression direction, with wire wound in a spiral shape with gaps between each coil. ● Dimensional and spring characteristic tolerances comply with JIS B2704 Class 2. Applications: ● A spring used in the compression direction. Specifications: ● Wire diameter d (mm): 0.25 ● Outer diameter D (mm): 2.25 ● Free height L (mm): 11.4 ● Number of turns (turns): 14.50 ● Spring constant (N/mm): 0.353 ● Allowable load (N): 1.78 ● Load height L1 (mm): 6.1 ● Solid height (mm): 3.9 ● Free length (mm): 11.4 ● Terminal shape: Closed end ● Winding direction: Right-handed winding ● Operating temperature range: 290°C or less Material/Finish: ● Stainless steel (SUS304-WPB)
