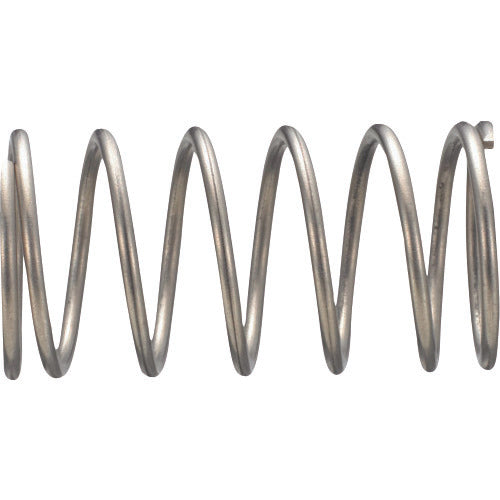

TRUSCO Stainless Steel Compression Coil Spring D32Xd3.2XL46 (2 pieces) TSS-55285 1 PK

Catalog number: TSS-55285 Features: ● A spring used in the compression direction, with wire wound in a spiral shape with gaps between each coil. ● Dimensional and spring characteristic tolerances comply with JIS B2704 Class 2. Applications: ● A spring used in the compression direction. Specifications: ● Wire diameter d (mm): 3.2 ● Outer diameter D (mm): 32 ● Free height L (mm): 46 ● Number of turns (turns): 6.50 ● Spring constant (N/mm): 8.365 ● Allowable load (N): 179.46 ● Load height L1 (mm): 24.6 ● Solid height (mm): 20.8 ● Free length (mm): 46 ● Terminal shape: Closed end ● Winding direction: Right-handed winding ● Operating temperature range: 290°C or less Material/Finish: ● Stainless steel (SUS304-WPB)
