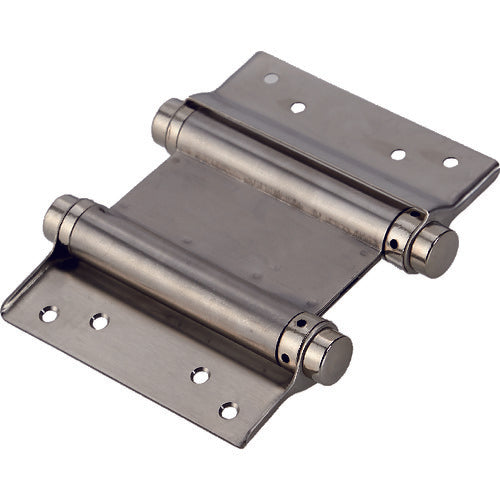

TRUSCO Stainless Steel Free Hinge, Double Opening, Total Length 102mm (2 Pieces) FH102-SUS-B 1 Box

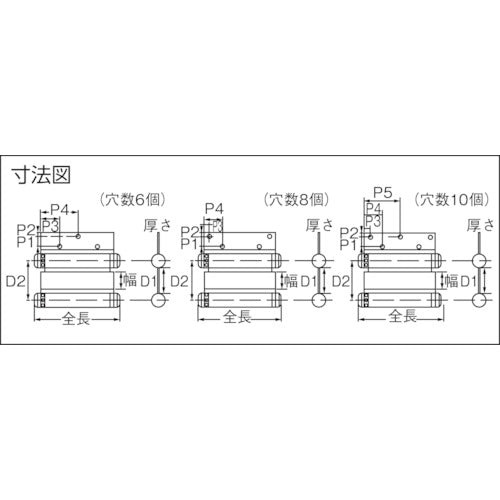

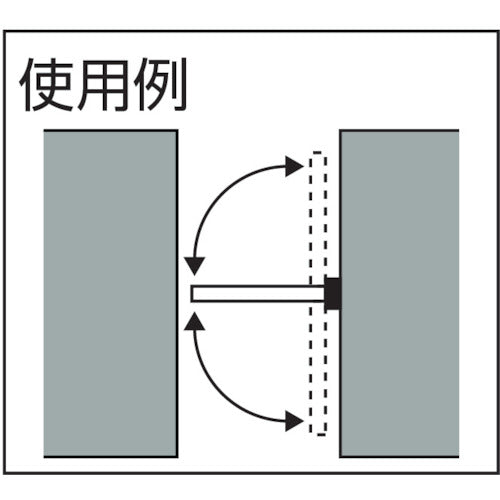

Catalogue number: FH102-SUS-B Features: ● A spring is built in to keep the door always closed. ● Torque can be adjusted. Applications: ● Indoor swing doors, etc. Specifications: ● Total length (mm): 102 ● Width (mm): 39 ● Thickness (mm): 1.2 ● Number of screw holes: 8 ● Hole diameter (mm): 5 ● D1 (mm): 29 ● D2 (mm): 55.0 ● Load capacity (kg) when using 2 pieces: 10 ● Surface treatment: Buff polishing ● P1 (mm): 16 ● P2 (mm): 9.5 ● P3 (mm): 13.5 ● P4 (mm): 30 ● Number of wood screws: 8 ● Wood screw size (mm) diameter: 3.5 ● Wood screw size (mm) length: 22 ● Installation method: Wood screw (included) ● Double-opening type ● Opening and closing torque adjustment available Material/Finish: ● Body: Stainless steel (SUS304) ● Spring: SWC spring steel
