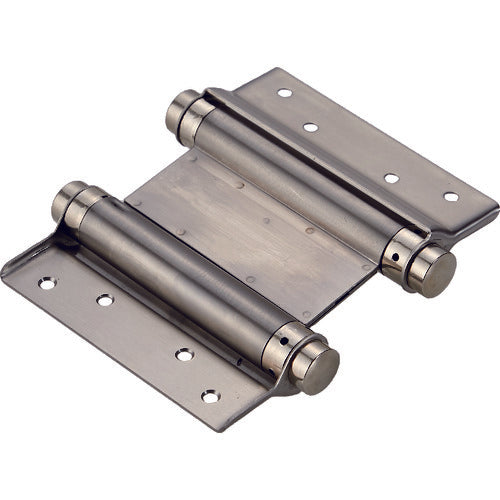

TRUSCO Stainless Steel Free Hinge, Double Opening, Total Length 127mm (2 Pieces) FH127-SUS-B 1 Box

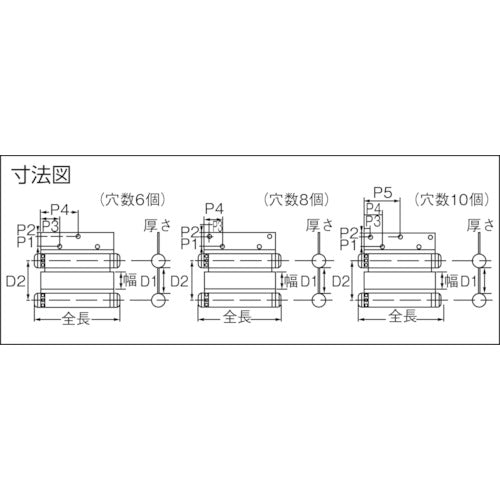

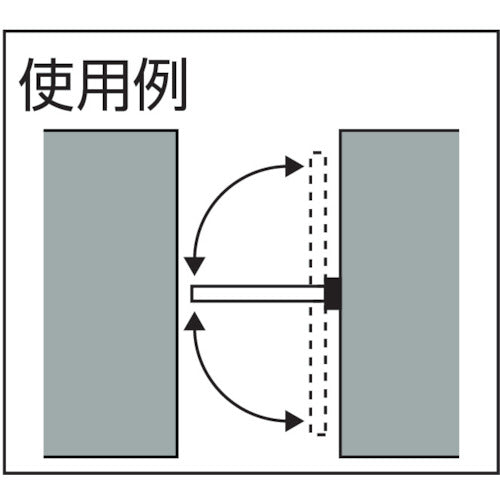

Catalog number: FH127-SUS-B Features: ● A spring is built in to keep the door always closed. ● Torque can be adjusted. Applications: ● Indoor swing doors, etc. Specifications: ● Total length (mm): 126 ● Width (mm): 44.5 ● Thickness (mm): 1.6 ● Number of screw holes: 8 ● Hole diameter (mm): 5 ● D1 (mm): 29 ● D2 (mm): 66.0 ● Load capacity (kg) when using 2 pieces: 13 ● Surface treatment: Buff polishing ● P1 (mm): 20.5 ● P2 (mm): 11.5 ● P3 (mm): 17.2 ● P4 (mm): 40.7 ● Number of wood screws: 8 ● Wood screw size (mm) diameter: 3.8 ● Wood screw size (mm) length: 25 ● Installation method: Wood screw (included) ● Double-opening type ● Opening and closing torque adjustment included Material/Finish: ● Body: Stainless steel (SUS304) ● Spring: SWC spring steel
