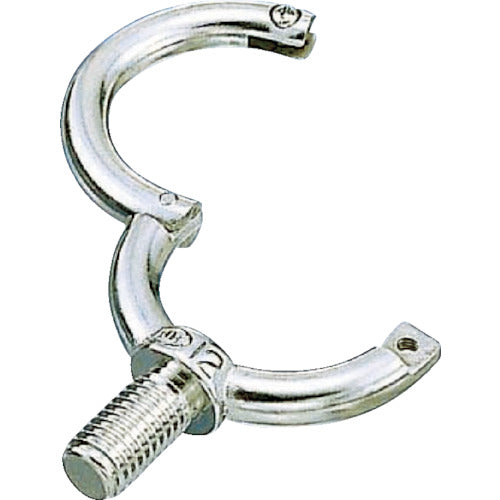

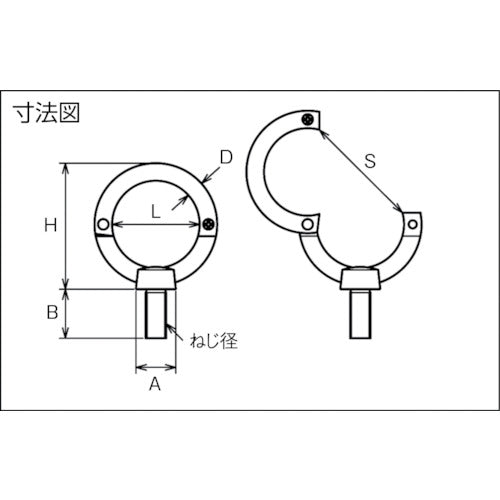

Catalog number: TOIB-8M Features: ●It can be easily opened with a screwdriver, so pipes etc. can be passed through after bolt installation. Applications: ●Lifting machinery and equipment, general loading and unloading. Specifications: ●Working load (kN): 0.49 ●Thread diameter: M8 x 1.25 ●D (mm): 6 ●B (mm): 15 ●L (mm): 30 ●H (mm): 42 ●A (mm): 13 ●S (mm): 45 Material/Finish: ●Stainless steel (SUS304)
