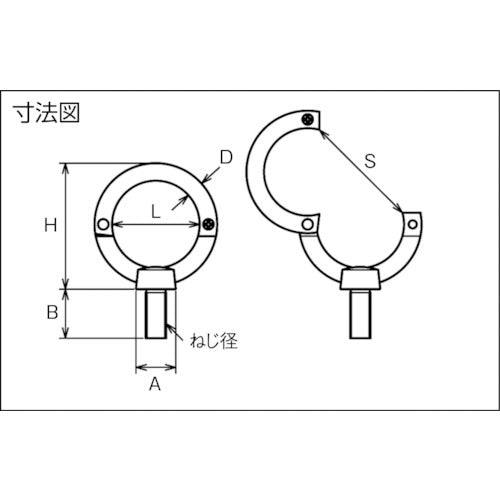

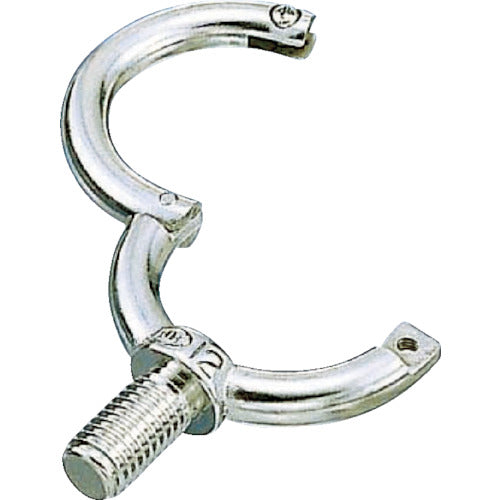

Catalog number: TOIB-6W Features: ●It can be easily opened with a screwdriver, so pipes etc. can be passed through after bolt installation. Applications: ●Lifting machinery and equipment, general loading and unloading. Specifications: ●Working load (kN): 0.29 ●Thread diameter: W1/4 x 1.0 ●D (mm): 5 ●B (mm): 14 ●L (mm): 25 ●H (mm): 36 ●A (mm): 11 ●S (mm): 35 Material/Finish: ●Stainless steel (SUS304)
