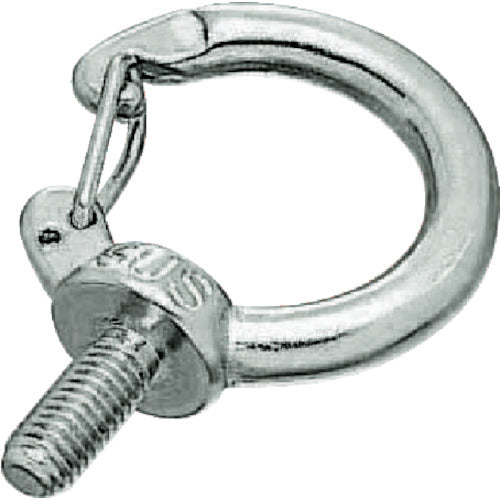

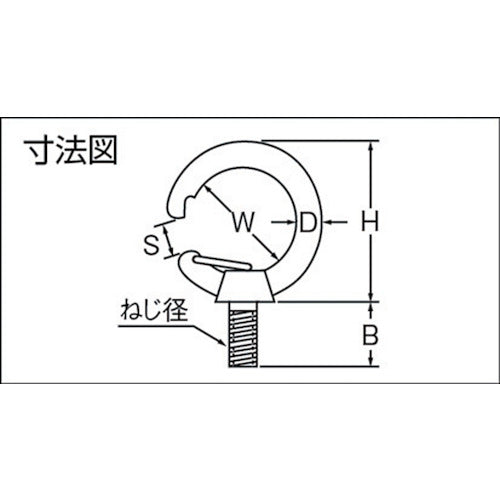

Catalog number: TFIB-10 Features: ● A hook that can be opened and closed is attached to the conventional eye bolt, so you can pass things through it after installation. Uses: ● As a terminal fitting. Specifications: ● Working load (kN): 0.39 ● Thread diameter: M10 x 1.5 ● D (mm): 10 ● B (mm): 25 ● H (mm): 59 ● W (mm): 40 ● S (mm): 12 ● No nut Material/Finish: ● Stainless steel (SUS304)
