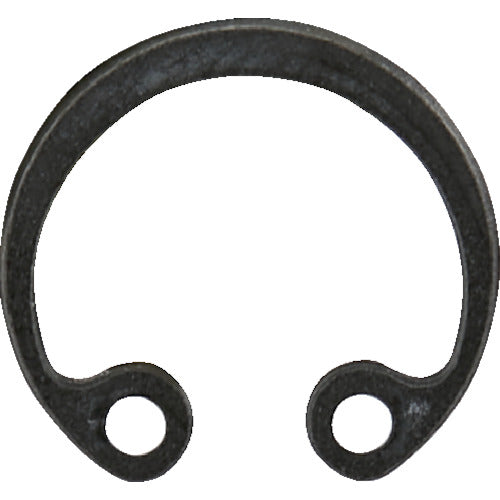

TRUSCO Snap Ring for Holes, Steel, Nominal Diameter R-12, 10 Pieces, Small Pack, Y851-0012, 1 Bag

Catalog number: Y851-0012 Features: ● A standard C-type retaining ring. ● A small pack series that is convenient when only a small amount is needed. Applications: ● For positioning parts, preventing them from coming loose in the axial direction, and restricting movement. Specifications: ● Nominal diameter: R-12 ● Retaining ring (mm) d3: 13 ● Retaining ring (mm) t: 1 ● Suitable hole (reference) (mm) d1: 12 ● Suitable hole (reference) (mm) d2: 12.5 ● Suitable hole (reference) (mm) m: 1.15 ● Package: Bag ● For holes Material/Finish: ● Spring steel (equivalent to S65C)
