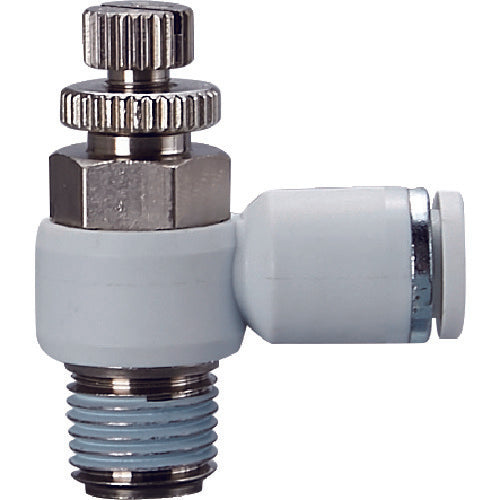

TRUSCO Speed ​​Controller Elbow Type Meter Out 8mm R1/4 SCOUT08-02 1 pc

Catalog number: SCOUT08-02 Features: ●Easy speed control in the low flow range. ●Uses PBT (polybutylene terephthalate) resin to prevent accidents in welding environments. ●New lock ring allows smooth and reliable piping work. Specifications: ●Connection diameter cylinder side: R1/4 ●Applicable tube outer diameter D (mm): 8 ●Operating pressure (MPa): 0 to 0.9 ●Operating fluid: Air ●Fluid temperature (℃): 0 to 60 (no freezing) ●Meter-out type Materials/Finish: ●Resin parts: Polybutylene terephthalate (PBT) ●Metal parts: Brass ●Lock ring: SUS ●Guide/buckling: Zinc die-cast
