トラスコ中山(株)

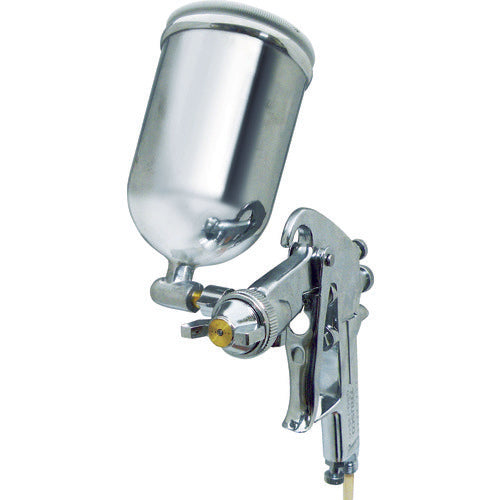

TRUSCO Spray Gun Set Gravity Type 1.3mm GSG-13S-LC 1 S
TRUSCO Spray Gun Set Gravity Type 1.3mm GSG-13S-LC 1 S
Regular price
¥10,351
Regular price
Sale price
¥10,351
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

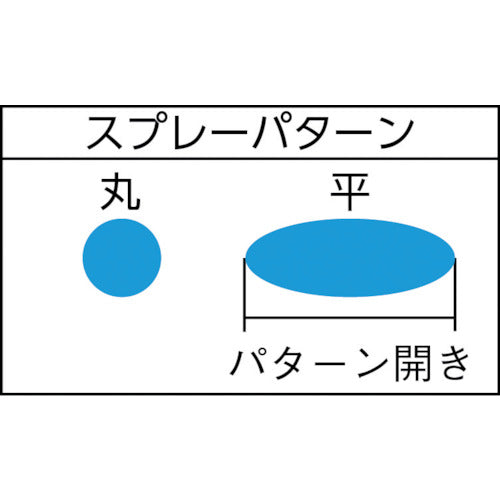

Catalog number: GSG-13S-LC Features: ●The gun is inspected in Japan under the same test as JIS standard JISB9809 products. ●It is a set type of gun and cup that can be used immediately. Uses: ●Mixing and topcoating of small items. Specifications: ●Nozzle diameter (mm): 1.3 ●Required compressor (kW): 0.75-1.5 ●Air consumption (L/min): 90 ●Pattern opening (mm): 150 ●Atomization stage: General purpose ●Air attachment port: G1/4 ●Cup attachment port: G1/4 ●Cup capacity (cc): 400 ●Paint supply method: Gravity type ●Gravity type Material/Finish: ●Main body: Aluminum die-cast ●Wetted parts: Stainless steel, brass, aluminum die-cast ●Cup: Brass, aluminum die-cast Note: ●Please set the spray air pressure to around 0.3MPa. ●Please measure the viscosity of the paint with a viscometer for around 20 seconds. However, it may vary slightly depending on the properties of the paint.
View full details
