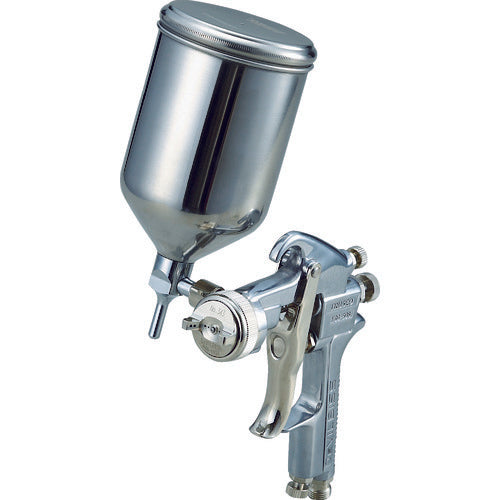

TRUSCO Gravity Spray Gun Nozzle Diameter Φ1.4 0.4L SUS Cup Set TSG-508G-14SS 1 S

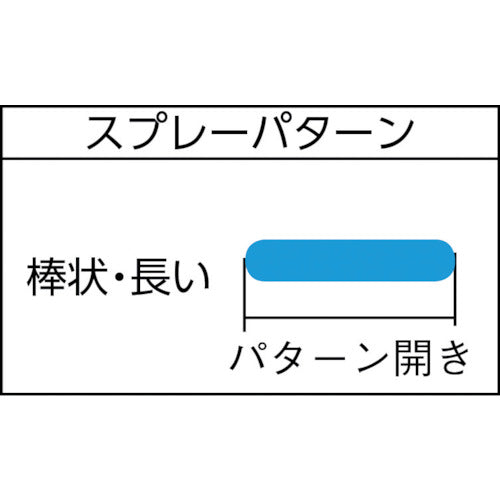

Catalog number: TSG-508G-14SS Features: * Gun hand pressure is 0.2MPa, a medium-low pressure, with little splashing and high coating efficiency. * Nozzle and cap are processed with a ball and cone method to obtain a spray pattern. * Use for everything from painting luxury cars to preventing rust on steel frames. * The gun's wetted parts are stainless steel, so it is also compatible with water-based paints. Applications: * Automobiles (painting), metal painting, woodworking, furniture, plastic painting, food industry, etc. Specifications: Nozzle diameter (mm): 1.4 Required compressor (kW): 2.2 Air consumption (L/min): 250 Pattern opening (mm): 250 Atomization stage: Highly fine particles Cup mounting port: G1/4 Set contents: Gun TSG-508G-14, Cup TGC-04C Gravity type Air intake port: G1/4 Cup capacity: 0.4L Material/Finish: Body: Aluminum die-cast Liquid contact part: Stainless steel (SUS304) Cup: Stainless steel (SUS304) Set contents/Accessories: Gun TSG-508G-14 Cup TGC-04C
