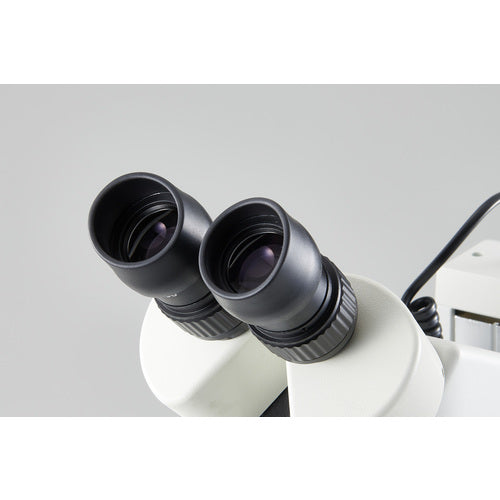

TRUSCO Zoom Stereo Microscope Binocular with LED Ring Light SCOPRO ZMSR-B1 1 unit

Catalog number: ZMSR-B1 Features: ●A zoom type stereo microscope suitable for magnified inspection of electronic parts and precision parts. ●Two types of illumination are used: a ring-type LED epi-illumination and an LED transmitted illumination, and the amount of light can be adjusted with the brightness adjustment knob. ●A microscope that allows you to observe the object as it is, without having to slice it into a specimen. ●A microscope that allows you to observe the object as it is, without having to slice it into a specimen. ●Demo units are available. Please contact your dealer or sales branch if you are interested. Applications: ●For inspection of electronic parts and precision instruments, appraisal of gems and minerals, and observation of plants and living things. Specifications: ● Total magnification (times): 7-45 ● Objective lens (times): 0.7-4.5 ● Eyepiece lens (times): 10 ● Field of view (mm): 21 ● Working distance (mm): 100 ● Observable height (mm): 175 ● Width (mm): 250 ● Depth (mm): 285 ● Height (mm): 480 ● Mirror body type: Binocular tube type, inclination angle 45 degrees/360 degree rotation ● Transmitted illumination (W): LED ● Incident illumination: LED ring illumination ● Power supply (V): AC100V-240V (50/60HZ) ● Power supply: AC100V-240V (50/60HZ) ● Thickness (mm): 300-450 ● Binocular zoom type ● Zoom ratio 1:6:4 ● Interpupillary adjustment range 55mm-75mm ● Stage plate: Φ80 frosted glass, Φ80 black/white acrylic plate
