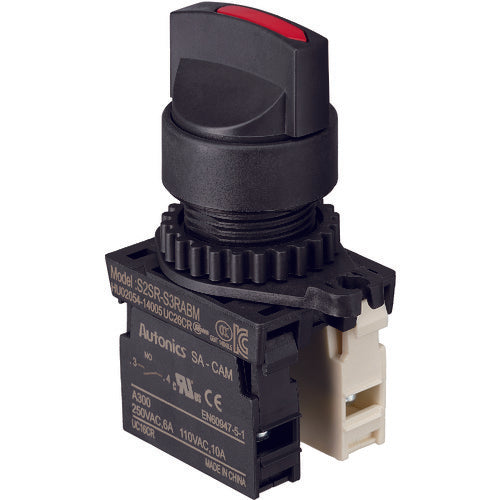

TRUSCO Selector Switch Φ25 90° 2 Notches 1a-1b Red 25S-902-1A1B-R 1 pc

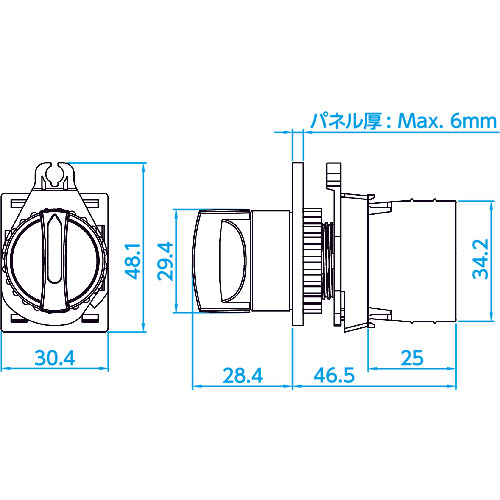

Catalog number: 25S-902-1A1B-R Features: ●The contact block can be attached and detached, allowing for three-stage connection. Excellent durability and arc resistance. ●Two knob colors, red and white, are available so that they can be used according to the task. Specifications: ●Operation: 90° 2 notches ●Contact configuration: 1a-1b ●Number of circuits: 2 ●Function operation: Alternate ●Mounting hole dimensions (mm): 25 ●Panel cut size (mm): Φ25.5 ●Color: Red ●Protection rating: IP52 ●Panel cut size: Φ25.5 ●UL standard compliant
