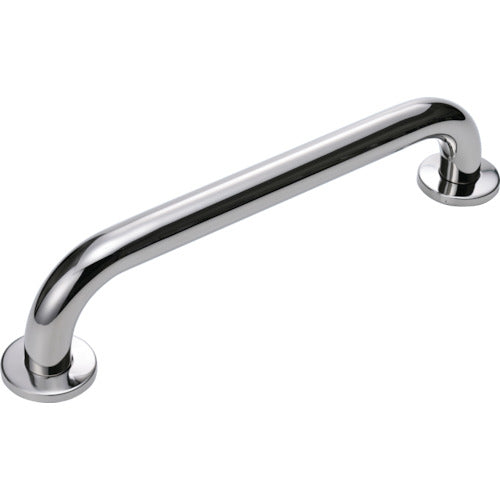

TRUSCO Safety Bar Stainless Steel Mirror Finish Φ19XP200XH56 TSB-19-200K 1 pc

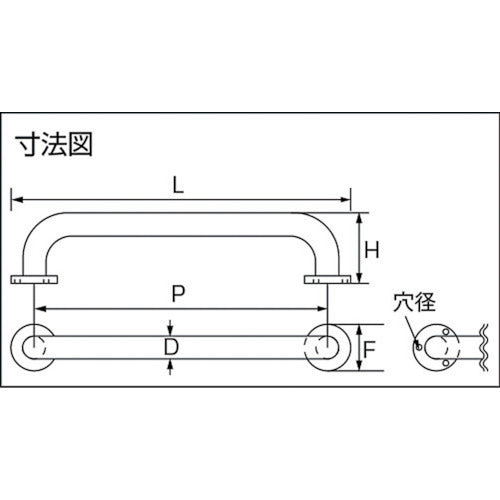

Catalog number: TSB-19-200K Features: ●Mirror finish. ●Covered for a clean look. ●Can be installed on ships and used as a handrail. ●Can also be installed on tiled concrete walls. (Included PC plug or commercially available anchor required.) Applications: ●Used for stairs, entrances, toilets, corridors, etc. Specifications: ●Total length (mm): 246 ●Total height (mm): 56 ●Diameter (mm): 19 ●Mounting pitch (mm): 200 ●Washer diameter (mm): 46 ●Hole diameter (mm): 5 ●Reference load (kN): 0.78 ●B1 (mm): 46 Material/Finish: ●Stainless steel (SUS304) Set contents/Accessories: ●Stainless steel/plus tapping screws: 6 pieces ●PC plugs: 6 pieces Caution: ●For plywood or plasterboard: Be sure to use the attached tapping screws to install on a wall that can be screwed into. ●For tiles or concrete walls: Use the attached PC plug or commercially available anchor. We recommend that you ask a specialist store to install it for you. ●In any case, please check carefully that it is installed securely and that it is not loose.
