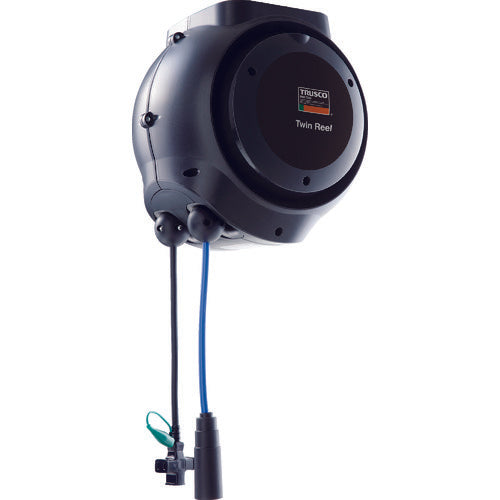

TRUSCO Twin Reel Air Φ6.5 x 10M Cord 3-core x 10M TAC10-65-3 1 unit

Catalog number: TAC10-65-3 Features: ●Reel with integrated air hose and power cord. ●Two types of reels designed into one compact and stylish body. ●Save the trouble of installing two reels with just one. Applications: ●Repair shops for automobiles, motorcycles, agricultural machinery, heavy machinery, etc., production and assembly factories, etc. ●For use around machine tools and in maintenance and repair departments, etc. Specifications: ● Hose inner diameter x outer diameter (mm): 6.5 x 10 ● Total hose length (m): 10 ● Primary installation side: R1/4 ● Secondary installation side: G1/4 ● Primary hose length (m): 0.8 ● Secondary hose length (m): 10 ● Operating pressure (MPa): 1.4 ● Width (mm): 283 ● Depth (mm): 337 ● Height (mm): 368 ● Outer diameter (mm): 10 ● Installation type: Hanging ● Inner diameter (mm): 6.5 ● Compatible tube outer diameter (mm): 10 ● Color: Black ● Hose material: Polyurethane ● Number of cores (C): 3 ● Wire thickness (［［MM2］］): 1.25 ● Outlet specifications: Triple outlet With earth clip ● Air hose inner diameter x outer diameter (mm): 6.5 x 10.0 ● Rated voltage (V): 125 ● Rated current (A): 6 ● Wire type: VCT ● Operating pressure: 1.4MPa ● Rated voltage: AC100V ● Rated current: 6A ● Outlet specifications: Triple outlet with earth clip Material/Finish: ● Body: ABS resin ● Hose material: Polyurethane Set contents/Accessories: ● Hose nipple R1/4 ● Hose band Φ10.5
