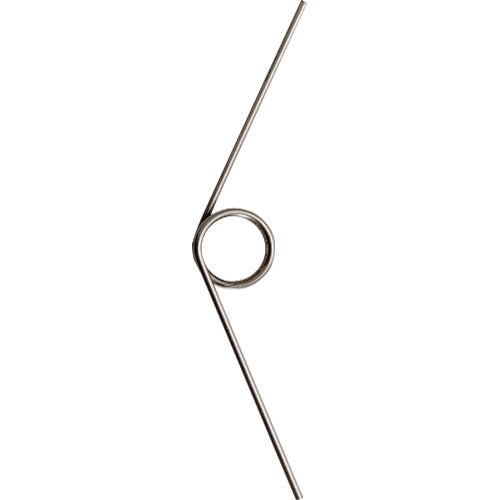

TRUSCO Torsion Spring Stainless Steel D12 x d1.8 x L48 135° 5 turns 2 pieces Left-handed TS-33108LB 1 PK

Catalog number: TS-33108LB Features: ● A cylindrically wound spring used in a twisting direction relative to the coil center line. ● When used in a direction that closes the arm angle, the coil diameter decreases, so the diameter of the spring support rod is ideally about 90% of the coil inner diameter at maximum load. ● This spring requires force to be pinched back by a clip or similar. Specifications: ● Wire diameter d (mm): 1.8 ● Coil inner diameter D (mm): 12 ● Length L (mm): 48 ● Number of turns (turns): 5 ● Spring constant (N mm/deg): 7.03 ● Allowable displacement (°): 76 ● Arm angle (°): 135 ● Spring constant (N/mm): 7.03 ● Type: Left-handed (LB) ● Product number: TS33108 (winding direction symbol) ● Arm angle: 135° Material/Finish: ● Stainless steel (SUS304-WPB)
