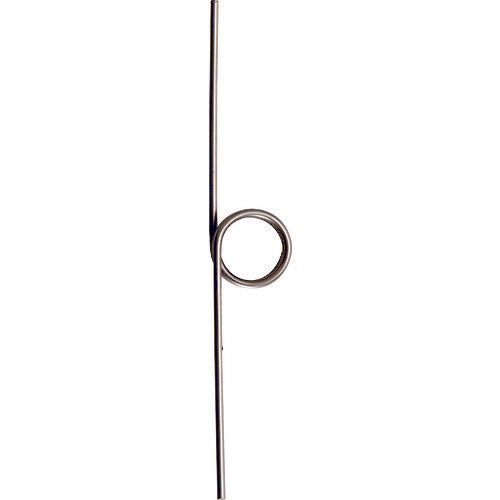

TRUSCO Torsion Spring Stainless Steel D14 x d1.4 x L56 180° 5 turns 2 pieces Right-handed TS-33112RC 1 PK

Catalog number: TS-33112RC Features: ● A cylindrically wound spring used in a twisting direction relative to the coil center line. ● When used in a direction that closes the arm angle, the coil diameter decreases, so the diameter of the spring support rod is ideally about 90% of the coil inner diameter at maximum load. ● This spring requires force to be applied by pinching it back with a clip or similar. Specifications: ● Wire diameter d (mm): 1.4 ● Coil inner diameter D (mm): 14 ● Length L (mm): 56 ● Number of turns (turns): 5 ● Spring constant (N mm/deg): 2.30 ● Allowable displacement (°): 115 ● Arm angle (°): 180 ● Spring constant (N/mm): 2.30 ● Type: Right-handed (RC) ● Product number: TS33112 (winding direction symbol) ● Arm angle: 180° Material/Finish: ● Stainless steel (SUS304-WPB)
