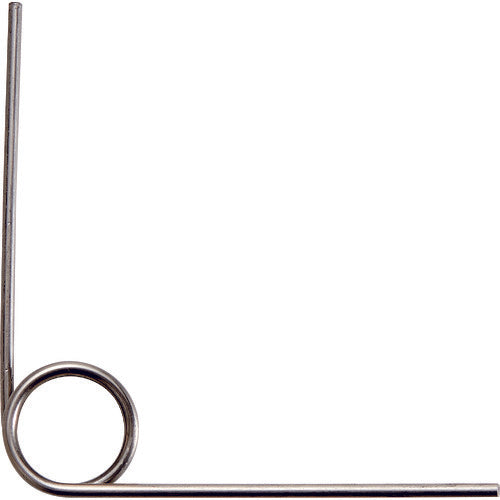

TRUSCO Torsion Spring Stainless Steel D14 x d1.8 x L56 90° 2 turns 2 pieces Right-handed TS-33113RA 1 PK

Catalog number: TS-33113RA Features: ● A cylindrically wound spring used in a twisting direction relative to the coil center line. ● When used in a direction that closes the arm angle, the coil diameter decreases, so the diameter of the spring support rod is ideally about 90% of the coil inner diameter at maximum load. ● This spring requires force to be applied by pinching it back with a clip or similar. Specifications: ● Wire diameter d (mm): 1.8 ● Coil inner diameter D (mm): 14 ● Length L (mm): 56 ● Number of turns (turns): 2 ● Spring constant (N mm/deg): 13.50 ● Allowable displacement (°): 36 ● Arm angle (°): 90 ● Spring constant (N/mm): 13.50 ● Type: Right-handed (RA) ● Product number: TS33113 (winding direction symbol) ● Arm angle: 90° Material/Finish: ● Stainless steel (SUS304-WPB)
