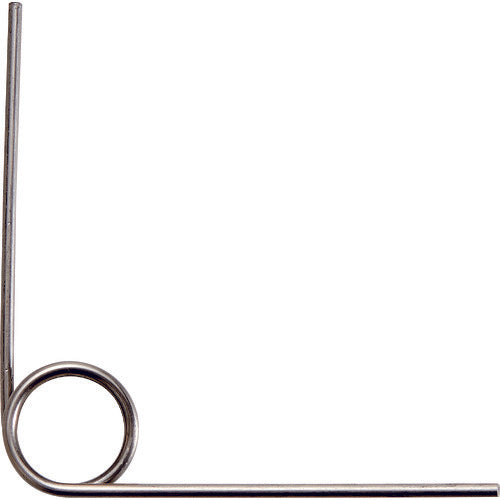

TRUSCO Torsion Spring Stainless Steel D14 x d2.0 x L56 90° 2 turns 2 pieces Right-handed TS-33117RA 1 PK

Catalog number: TS-33117RA Features: ● A cylindrically wound spring used in a twisting direction relative to the coil center line. ● When used in a direction that closes the arm angle, the coil diameter decreases, so the diameter of the spring support rod is ideally about 90% of the coil inner diameter at maximum load. ● This spring requires force to be pinched back by a clip or similar. Specifications: ● Wire diameter d (mm): 2.0 ● Coil inner diameter D (mm): 14 ● Length L (mm): 56 ● Number of turns (turns): 2 ● Spring constant (N・mm/deg): 20.36 ● Allowable displacement (°): 33 ● Arm angle (°): 90 ● Spring constant (N/mm): 20.36 ● Type: Right-handed (RA) ● Product number: TS33117 (winding direction symbol) ● Arm angle: 90° Material/Finish: ● Stainless steel (SUS304-WPB)
