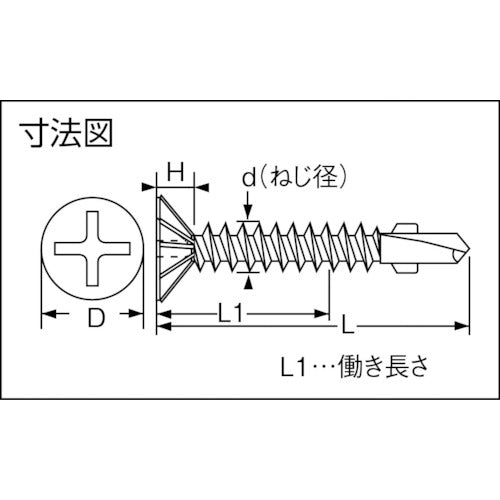

Catalog number: SBW-28 Features: ● The two blades at the tip drill holes in the base material to prevent the plate from floating. ● The blades come off when penetrating the steel frame, so sufficient fastening force can be obtained. ● A reamer flex that countersinks with the serrations (flex) under the neck. ● Suitable for fastening wood and steel frames. Specifications: ● Maximum compatible plate thickness (mm): 1.6 to 2.3 ● Compatible driver: Phillips No. 2 ● Nominal dimension (mm) L1: 13 ● Nominal dimension (mm) H: 2.6 ● Nominal dimension (mm) d x L: 4 x 28 ● Dimension (mm) S: Full thread ● Nominal dimension (mm) D: 7.5 ● Package: Bolt pack (blister) Material/Finish: ● Stainless steel (SUS410)
