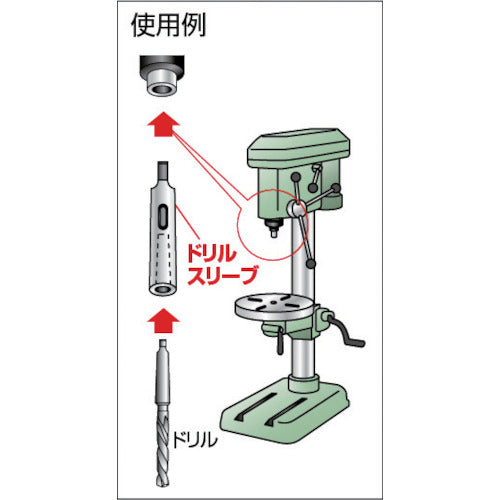

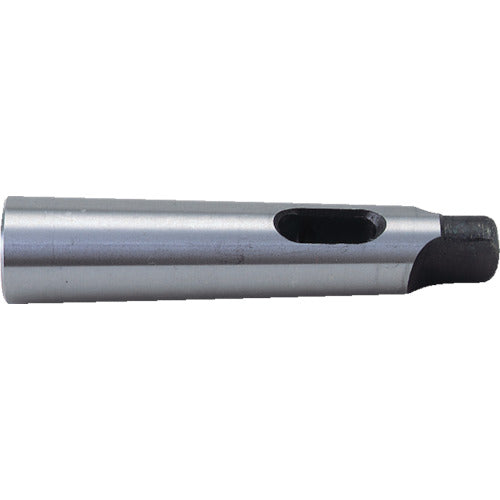

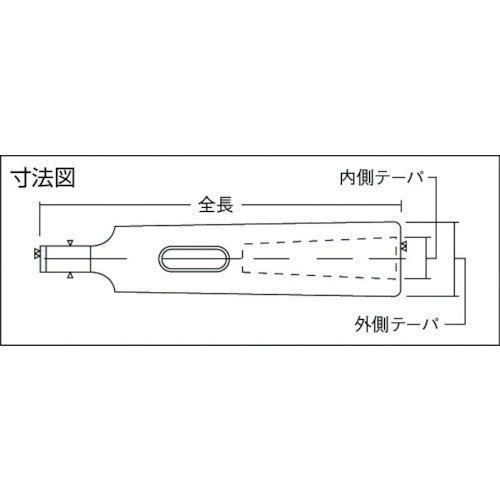

Catalog number: TDS-35Y Features: ● Used to reduce the Morse taper size of drills and reamers. (To match the spindle taper size of the drill press used, etc.) Applications: ● As a connecting device for Morse taper drills. Specifications: ● Inner taper: MT3 ● Outer taper: MT5 ● Inner diameter (mm): 23.8 ● Outer diameter (mm): 44.4 ● Total length (mm): 156 Material/Finish: ● Chrome molybdenum steel (SCM415) ● Hardened and polished product Caution: ● When using, wipe off any rust-preventive oil (oil film) adhering to the inner and outer diameters of the drill sleeve and the contact surface of the drill with a cleaning agent before use.
