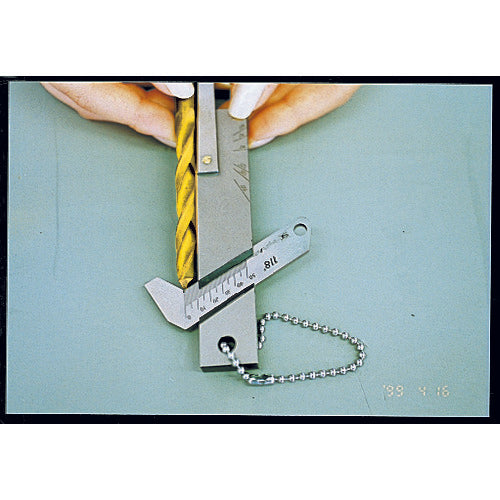

TRUSCO Drill Point Gauge TG-DP118 1 pc

Catalog number: TG-DP118 Features: ● Can simultaneously measure the length and left/right symmetry of drill cutting blades with diameters from 3 to 45 mm. ● The angle can be set using the rotor, making it convenient as a gauge for the tip angle of the workpiece. (With tip angle scales of 60, 70, 90, 125, 135, and 150°) ● Comes with a ball chain for easy portability. Applications: ● For measuring the length of drill cutting blades, drill tip angle, chisel edge eccentricity, and lip height difference. ● Summary: For drill points. Specifications: ● Tip angle (°): 118 ● Instrument error (°): ±1.5 ● Measurement drill diameter (mm): 3 to 45 Materials/Finish: ● Main scale/rotor: Stainless steel (SUS420J2) ● Base: General structural rolled material Note: ● Both the sliding rod and rotating rod are firmly assembled to prevent the rods from easily shifting.
