TRUSCO Nylon Caster Stainless Steel Fitting Fixed Φ100 TYSNK-100 1 pc

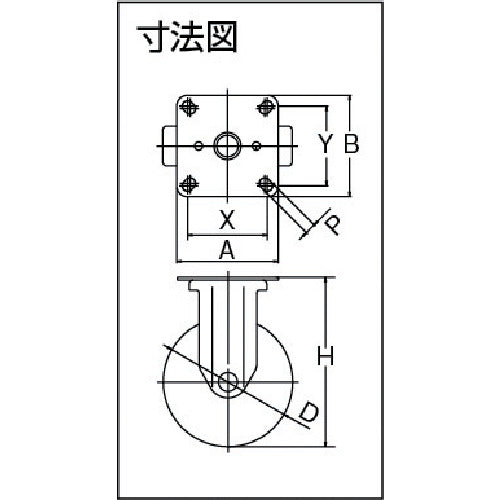

Catalogue number: TYSNK-100 Features: ●The metal fittings are made of stainless steel (SUS304) and the wheels are made of nylon, so they have excellent corrosion resistance and water resistance. Applications: ●For food factories, stores, offices, etc. Specifications: ●Wheel diameter D (mm): 100 ●Type: Fixed type ●Allowable load (daN): 100 ●Allowable load (kgf): 102.0 ●Wheel width (mm): 32 ●Mounting height H (mm): 132 ●Mounting seat A (mm): 110 ●Mounting seat B (mm): 75 ●Mounting pitch X (mm): 80-90 ●Mounting pitch Y (mm): 45-50 ●Mounting hole diameter P (mm): 11 ●Allowable load (N): 1000 ●Plate type ●Fixed type Materials/Finish: ●Metal fittings: Stainless steel (SUS304) ●Wheels: Nylon, with stainless steel bearings
