TRUSCO Nylon Wheel Urethane Caster Fixed Φ100 TYGUK-100 1 pc

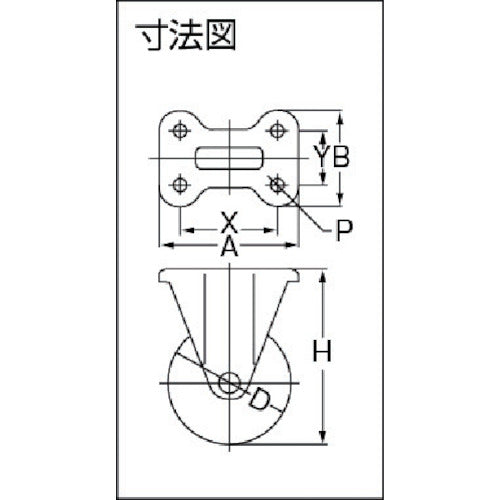

Catalog number: TYGUK-100 Features: *Lightweight due to the use of nylon wheels. Applications: *Wide range of applications including office equipment, furniture, transport vehicles, and lightweight racks. Specifications: ● Wheel diameter D (mm): 100 ● Type: Fixed type ● Allowable load (daN): 100 ● Allowable load (kgf): 102.0 ● Wheel width (mm): 32 ● Mounting height H (mm): 144 ● Mounting seat A (mm): 115 ● Mounting seat B (mm): 80 ● Mounting pitch X (mm): 80 ● Mounting pitch Y (mm): 45 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 1000 ● Wheel material: Nylon wheel urethane ● Caster diameter (mm): 100 ● Mounting seat (mm): 115 x 80 ● Mounting pitch (mm): 80 x 45 ● Plate type ● Commercial bearing included ● Fixed type Material / Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Nylon wheel, urethane (gray)
