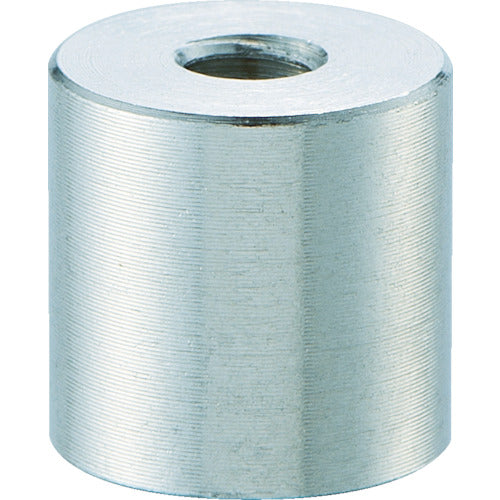

TRUSCO Neodymium Magnet Holder Φ16XH20 TNMGHH-16 1 pc

Catalog number: TNMGHH-16 Features: ● Neodymium magnet specification, small but powerful. ● High versatility, can be used for various purposes. Uses: ● For embedding in jigs and tools and various suction purposes. Specifications: ● Adhesive force (N): 37 ● Outer diameter (mm): 16 ● Height (mm): 20 ● Magnet diameter (mm): 10 ● Magnet height (mm): 2 ● Mounting screw: M6 x 1.0 Depth 12.0 ● Maximum operating temperature: 80°C Material/Finish: ● Magnet: Neodymium magnet ● Body: Steel ● Surface treatment: Nickel plating Caution: ● Please pay attention to the depth of the screw fastening. ● If screwed in too deeply, the magnet may come off.
