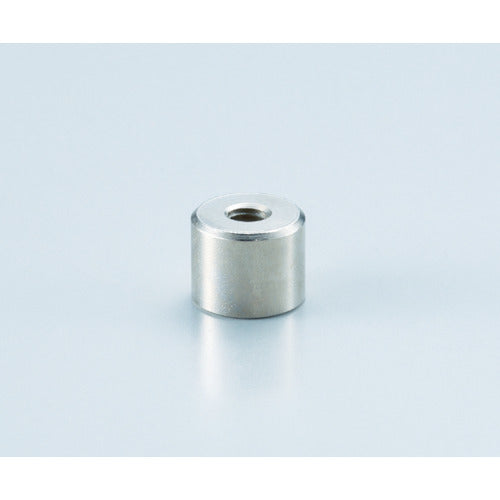

TRUSCO Neodymium Magnet Holder Φ16XH8 TNMG-16 1 pc
TRUSCO Neodymium Magnet Holder Φ16XH8 TNMG-16 1 pc
Regular price
¥990
Regular price
Sale price
¥990
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: TNMG-16 Features: ● Neodymium magnet specification, small but powerful. ● High versatility, can be used for various purposes. Uses: ● For embedding in jigs and tools and various suction purposes. Specifications: ● Adhesive force (N): 91 ● Outer diameter (mm): 16 ● Height (mm): 8 ● Magnet diameter (mm): 12.5 ● Magnet height (mm): 2 ● Mounting screw: M5 x 0.8 Depth 5.5 ● Maximum operating temperature: 80°C Materials/Finish: ● Magnet: Neodymium magnet ● Body: Steel ● Surface treatment: Nickel plating Caution: ● Please pay attention to the screw depth. ● If screwed in too deeply, the magnet may come off.
