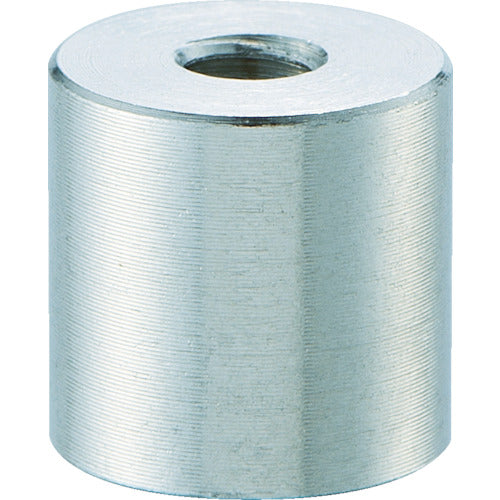

TRUSCO Neodymium Magnet Holder Φ20XH25 TNMGHH-20 1 pc

Catalog number: TNMGHH-20 Features: ● Neodymium magnet specification, small but powerful. ● High versatility, can be used for various purposes. Uses: ● For embedding in jigs and tools and various suction purposes. Specifications: ● Adhesive force (N): 60 ● Outer diameter (mm): 20 ● Height (mm): 25 ● Magnet diameter (mm): 12.5 ● Magnet height (mm): 2 ● Mounting screw: M8 x 1.25 depth 16.0 ● Maximum operating temperature: 80°C Material/Finish: ● Magnet: Neodymium magnet ● Body: Steel ● Surface treatment: Nickel plating Caution: ● Please pay attention to the screw depth. ● If screwed in too deeply, the magnet may come off.
