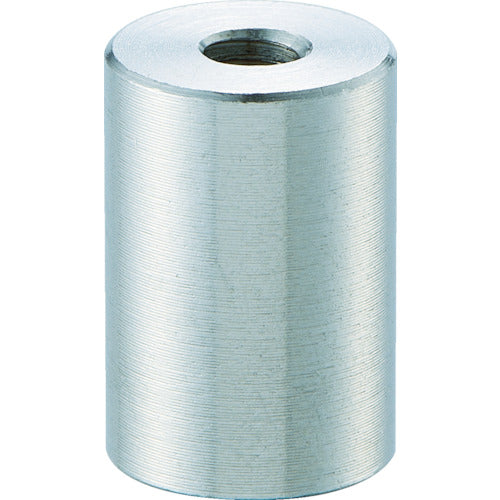

TRUSCO Neodymium Magnet Holder Φ25XH15 TNMGH-25 1 pc

Catalog number: TNMGH-25 Features: ● Neodymium magnet specification, small but powerful. ● High versatility, can be used for various purposes. Uses: ● For embedding in jigs and tools and various suction purposes. Specifications: ● Adhesive force (N): 160 ● Outer diameter (mm): 25 ● Height (mm): 15 ● Magnet diameter (mm): 21.5 ● Magnet height (mm): 5 ● Mounting screw: M8 x 1.25 Depth 9.5 ● Maximum operating temperature: 80°C Materials/Finish: ● Magnet: Neodymium magnet ● Body: Steel ● Surface treatment: Nickel plating Caution: ● Please pay attention to the screw depth. ● If screwed in too deeply, the magnet may come off.
